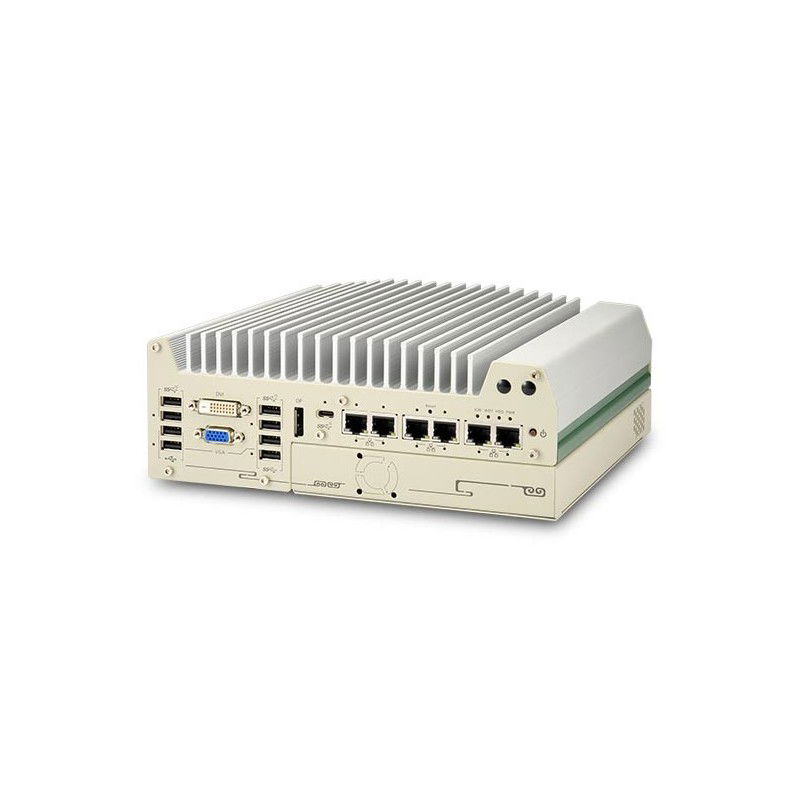

Intel® 12th-Gen Core™ Fanless Industrial PC with 6x GbE, USB 3.2 Type-C

Supports Intel® 12th Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
Patented cassette for PCI/PCIe add-on cards
2 x DDR5 4800 SO-DIMM slot (up to 64 GB RAM)
Robust, -25°C to 70°C fanless operation
Up to 5x 2.5 GbE and 1x GigE ports with optional PoE+ supporting 9.5 KB jumbo frame
1 x USB 3.2 Gen 2x2 Type-C and 6 x USB 3.2 Gen 2x1 Type-A ports
Supports M.2 Gen4 x4 NVMe and 2x SATA ports
Extension interface for easy feature extension
VGA/DVI/DP triple independent display that supports 4K2K resolution
Lots of versions, contact our sales department

EPC-I12X2E8U4SVDD
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Customer-specific solutions, special solutions and configuration, contact our sales department.
Large selection and stock of embedded PC solutions.

CPU
Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) i9-12900E/ i9-12900TE i7-12700E/ i7-12700TE i3-12100E/ i3-12100TE Pentium® G7400E/ G7400TE Celeron® G6900E/ G6900TE
Chipset
Intel® Q670E platform controller hub
Dimensioner
2 sizes contact sales 240 mm (W) x 225 mm (D) x 90 mm (H) (Singel slot solution E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) DUAL slot solution
Ethernet
There is more versions!1x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 with screw-lock OPTION:2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 with screw-lock
Forsyning
1x 3-pin pluggable terminal block for 8 to 48V DC input 1x 3-pin pluggable terminal block for remote control and PWR LED output
Grafik
Integrated Intel® UHD Graphics 770 (32EU)
Hukommelse
Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots)
Lyd
1x 3.5 mm jack for mic-in and speaker-out
M.2
1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD, 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module
mPCIe
1x full-size mini PCI Express socket
PCI
Needs to be ordered 2 solutions: 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in
PCI
Needs to be ordered 1x PCI slot in Cassette
PoE
Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget
Porte
2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4)
SSD
2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
TPM
Supports dTPM 2.0
Udgange
1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution
Udvidelser
1x expansion port for speciel IO modules
USB
1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen 1x1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports
AMT
Supports Intel vPro/ AMT 16.0
