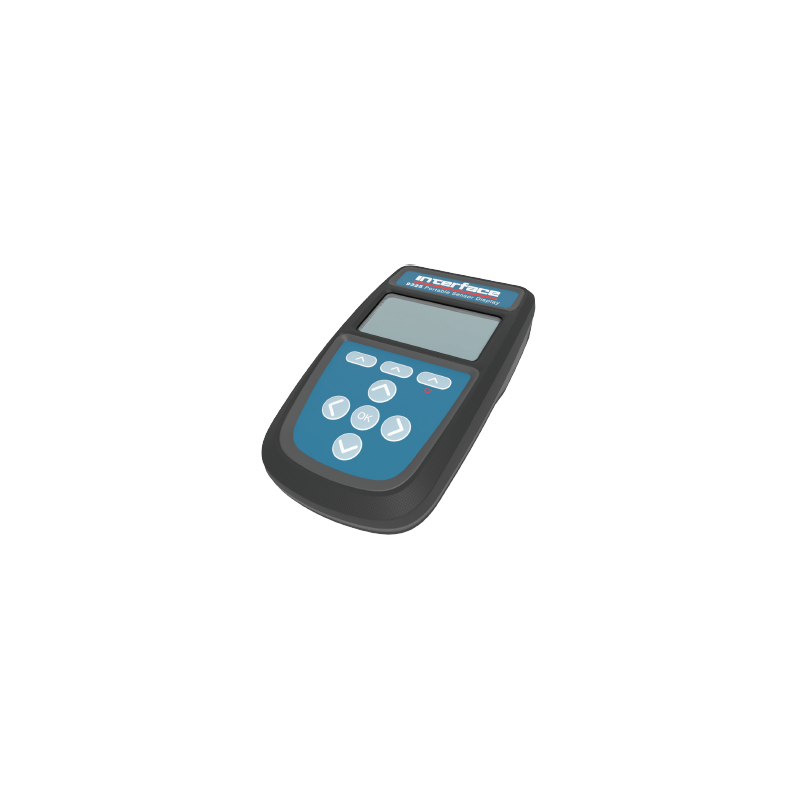

Portable road cell instrument for strain gauge input. Multi-point calibration, direct, mV/V. Logging and graphing. With TEDs

Sovereign Linearity Specifications
Excitation Voltage: 3.3Volt
Resolution: 24bit
% FS: 0.0002
Measurement speed up to 2400 samples per. Second
High internal resolution (up to 500,000 Counts)
IP67 Searched cabinet
Battery powered (long battery life)
128 x 64 Graphic screen with backlight
More display modes (Peak / bottom, Delta, Live , gross and net)
logging and graphing for PC (software is included)
support Ted's template 33, 40 and 41
Live calibration and multi-point calibration
Dim: 170 x 94 x 42 mm
Weight: 330 grams

INST-LOADCELL-PSD
13,369.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Inst-LoadCell PSD allows easy display of strain bridge-based measurements such as load cells, torque transducers and other MV / V output transducers with sensitivity up to +/- 1 v / v.
Up to 6 calibration areas are available, which enables different load modes (voltage and compression) or different sensors. Each calibration area remembers settings, such as selected devices and taraværdier.
TEDS devices using template 33, 40 and 41 can be connected and updating the calibration shown. The last twenty connected TED devices will be remembered and recognized when connected again and return to the last user settings for that device. Teds can be deactivated and the internal calibration areas become available again.
There are also up to 6 viewing modes available. These determine what is visible on the LCD display and what actions are available from the set of three soft keys.
Full configuration is available with a PC-based tool set. Simple configuration such as top block calibration is available from the handheld using the menu system.
