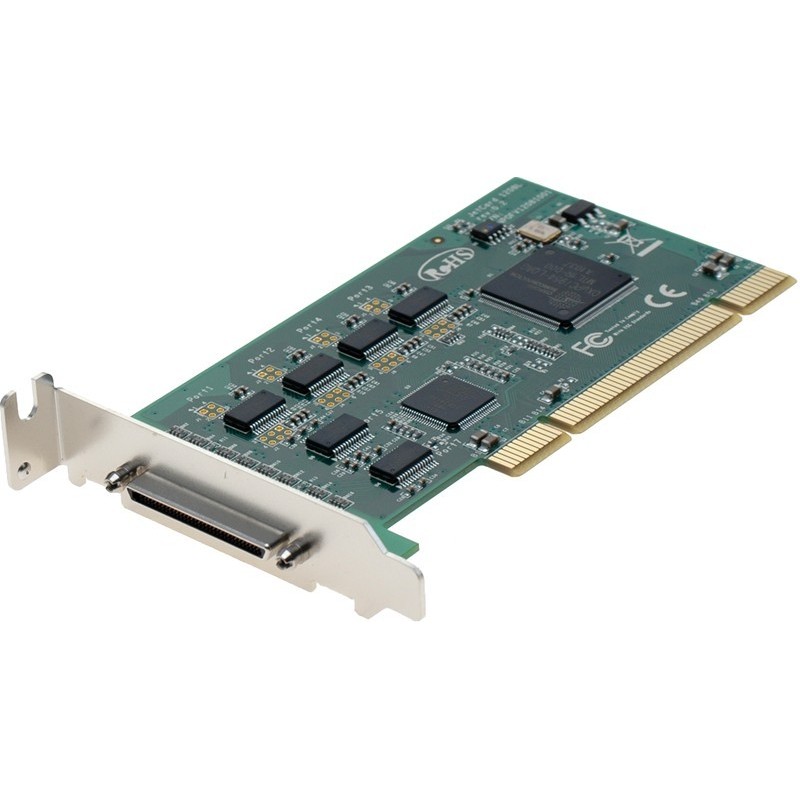

8 x RS232 serial ports for PCI - Korenix JetCard1208L

JetCard1208L serial card. 8 x RS232, low & high backplate

SER8PCI-K+
825.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

8 x high or low backplate serial ports

Burned warehouse

Antal Porte
8 porte til RS232. Op til 4 kort kan monteres i samme system (giver maks. 32 porte i alt)
Baudrate
50 bit/s ~ 921,6 Kbit/s
Buffer
128 bytes FIFO
Drivere
Windows 2000, XP, Win7 32 bit og 2003
Handshake
XON/XOFF eller hardware-baseret flowkontrol
Høj/lav profil
Høj bagplade (ikke lavprofil)
I/O og IRQ
PnP, vælges af BIOS
Isolation
15 KV ESD beskyttelse
Paritet
None, Even, Odd, Space eller Mark
Signaler
TxD, RxD, RTS, CTS, DTR, DSR, DCD og GND
Spænding
3.3 og 5 V PCI
Stik
1x DB62 hunstik(100 cm kabel med 1 x DB37 hhv. DB62 hanstik og 4/8 x DB9 hanstik medfølger)
Strømforbrug
Maks. 120 mA (+5 V)
Temperatur
-10° C - +70° C
UART
16C950 kompatibel
