Matrixomskifter til 2 VGA+LYD
2-Port Video Matrix Switch (2 inputs 2 outputs).
1x 2-Port Video Matrix Switch
1x VGA/Audio Cable (1.8m)
1x Power Adapter 1x User Instructions

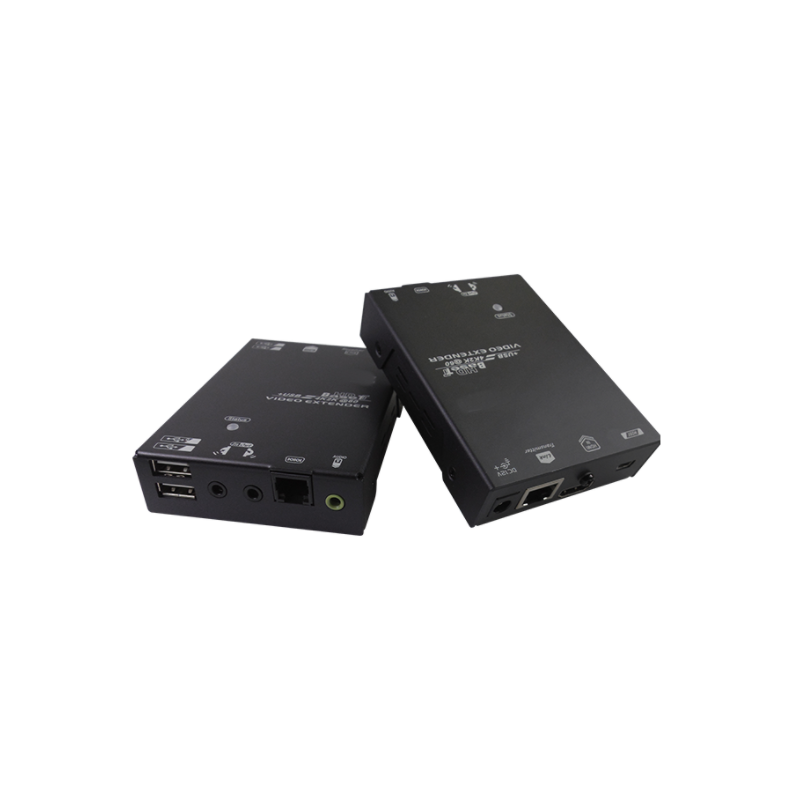

KVM Extender with 4K HDMI up to 100 meters
HDMI 2.0 - HDCP 2.2
USB 2.0 Bidirectional
Use minimum CAT 6A Cable of good quality
Transfer via 1 Pateck Cable
RS232 without control signals
IR input / output
uncompressed HDMI (HDbaset)
Auto Edid
Dim: 102 x 75 x 25 mm - Each box
Weight: Approx. 300 g
supply voltage: 12vdc
HDbaset HDMI 2.0 KVM Extender can transfer uncompressed 4K 6K HDMI 2.0 Video via single Cat.6a and CAT.7 Cable up to 70 meters, with USB 2.0, Serial. TRUE 4K HDMI sqm Extender over Cat.x with sound, serial, USB.
Units that support HDCP 2.2, (High -Bandwidth Digital Content Production) is more likely to be compatible with 4K UHD content. Most of the latest HDMI KVM extenders and video extenders support HDCP 2.2 and are especially backward compatible with the previous version. This means that you can connect older sources to a new 4K TV under HD streaming without HDCP 2.X to 1.X converter in between. DANBIT Video Extender supports the HDCP key to secure continuous video playback at all times.
Embedded Sound extension cable Function in DANBIT KVM Extender and Video Extender can independently transfer the audio signal from the transmitter unit to the output of the receiver unit and with the exception of HDMI sound. The separate source audio channel provides the other sound transmission that would be beneficial for the content creator, in video mail production or in case of emergency for message users of the computer or server room operating problems.
Full-duplex data communication between TX RX via Cat.x cable and fiber cable connection makes it a cost-effective hardware-based solution that provides remote access and control for all RS232 protocol devices without the need for any setup or configuration. RS232 serial extension is suitable for being used in digital signage, smart classroom, and smart Home Systems.
USB 2.0 Extension Function allows users to transmit USB 2.0 signals with downward compatibility, eliminating 5 meters the distance restriction for USB. The function has USB devices that share capacity without any installation, software or driver. Dedicated USB 2.0 port designed on the front and back of the extender unit is suitable for both long-term and temporary USB access.
HDbaseT Extender over Cat.6a cable is ideal for public radio And TV, exhibitions, shops, courtroom, bus station, and many more applications. In addition, it is easy to install, and no software or drivers are needed. The extender is compatible with all leading operating systems and supports most USB device types from high-speed webcams, hard drives, scanners, audio devices, touch screens, digital cameras, and games.
2-Port Video Matrix Switch (2 inputs 2 outputs).
1x 2-Port Video Matrix Switch
1x VGA/Audio Cable (1.8m)
1x Power Adapter 1x User Instructions
2 port 4K KVM switch for 2 monitors
HDMI and DisplayPort (DP) (Dual Head)
Video in: 2 x HDMI, 2 x DP
Video out: 1 x HDMI, 1 x DP for monitors
Can display 2 applications
Push button switches between PCs
Remote push button
4K@60Hz with short video cables
USB 2.0
2 x USB B for PCs
2 x USB A from M/K
1 x USB 2.0 A for printer etc.
Supply: 5VDC from USB ports
Power: max. 5W
Dimensions: 131 x 63 x 30 mm
4 port KVM switch - high end product
VGA resolution up to 1900 x 1440 pixels
With PS/2 or USB via adapter
Hot-key switching or push-button or auto-scanning
Can be set to Password user access
Powered from PS/2 or optional DC5V/4A-Q
KVM extender for VGA, USB K/M over Cat 5/5e/6 UTP
Up to 300 meters distance from a computer
1920 x 1440 @ 60Hz
2 users can share 1 computer, locally and remotely
Ideal for professional video applications
Only supports the standard USB HID keys
USB ONLY for keyboard and mouse (not touch)
No drivers needed or software required
Rotary knob adjustment of brightness and contrast (color)
Dimensions: 95 x 97 x 28mm
Supply voltage: 9~12VDC, PSU included
