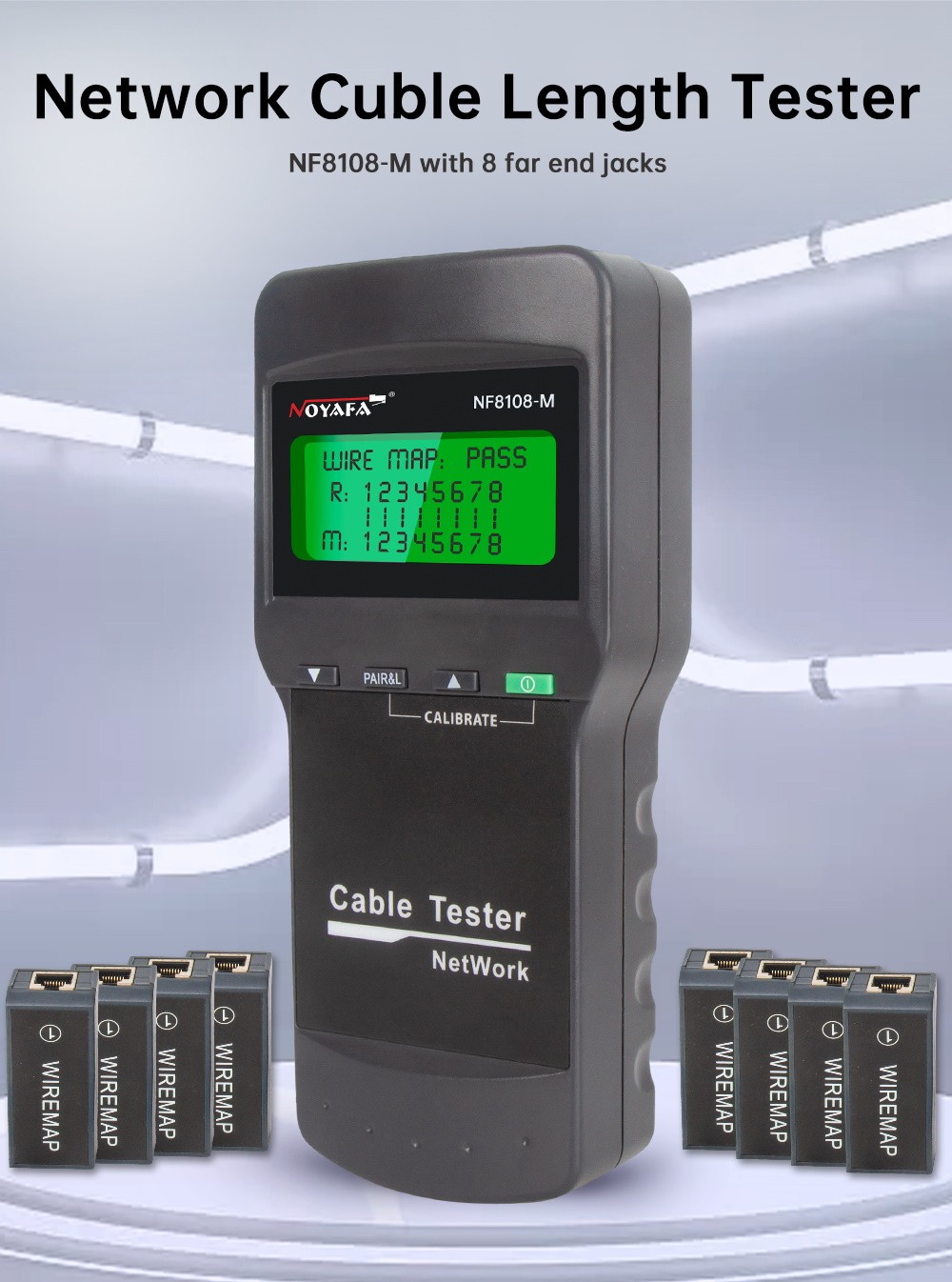

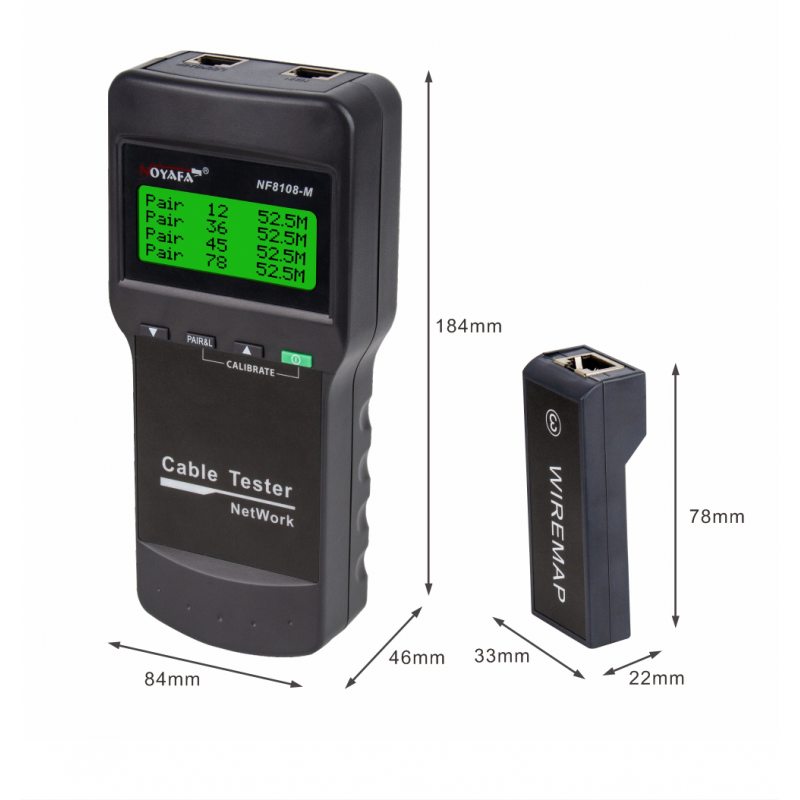

Tester Cat. 5, 5E, 6 and 7 network cables
Accuracy: ± 2m for cables under 10 meters, ± 5% for cables over 10 meters.
Test length for cables: 1 ~ 300 meters.
Tone Generator: Single / dual digital tone
Operating temperature: 0 ° C - 50 ° C
Storage temperature: -30 ° C - 50 ° C
Humidity: 10% - 90%

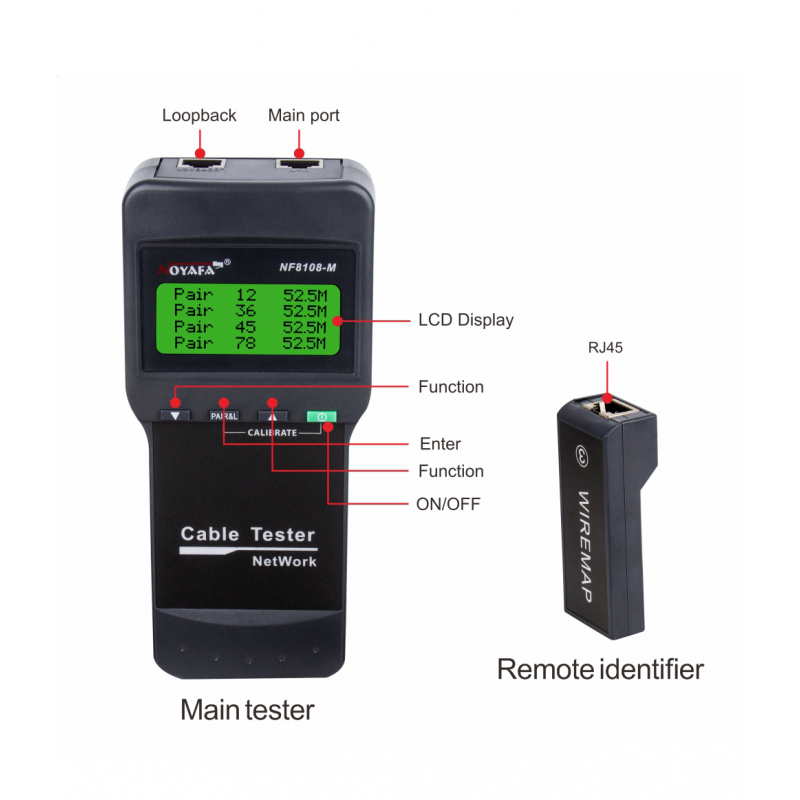

TEST-LAN-M-P is a handheld multifunctional network tester with integrated on- or offline testing of cables, devices, lengths and telephone lines.
In online test function where TEST-LAN-M-P ping network devices such as routers, switches, network printers and PCs etc. and the IP address, host name and MAC address of the ping address are mapped.
In offline test mode, TEST-LAN-M-P operates as a cable tester.

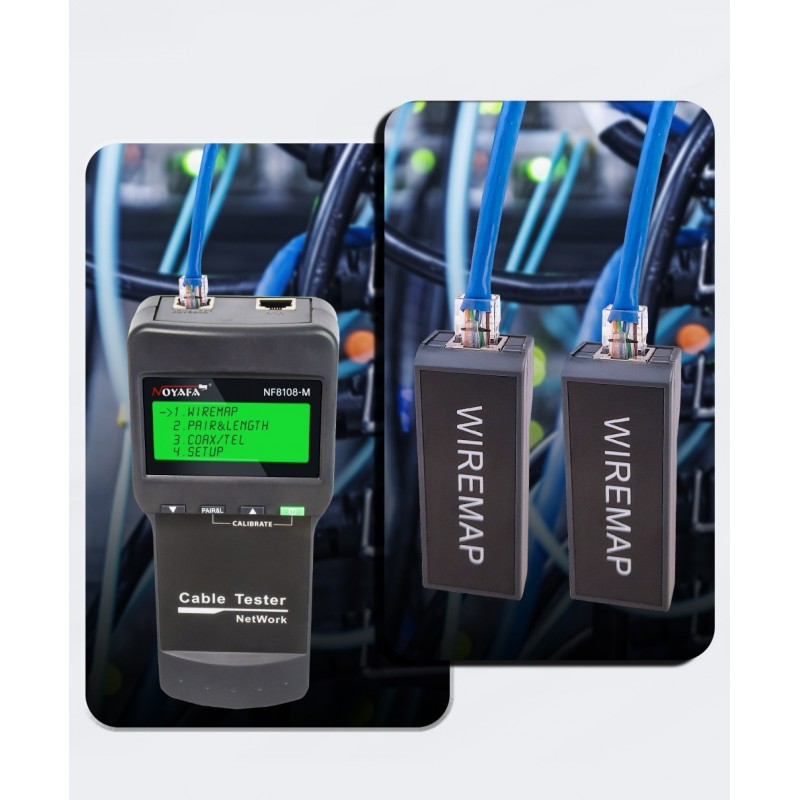

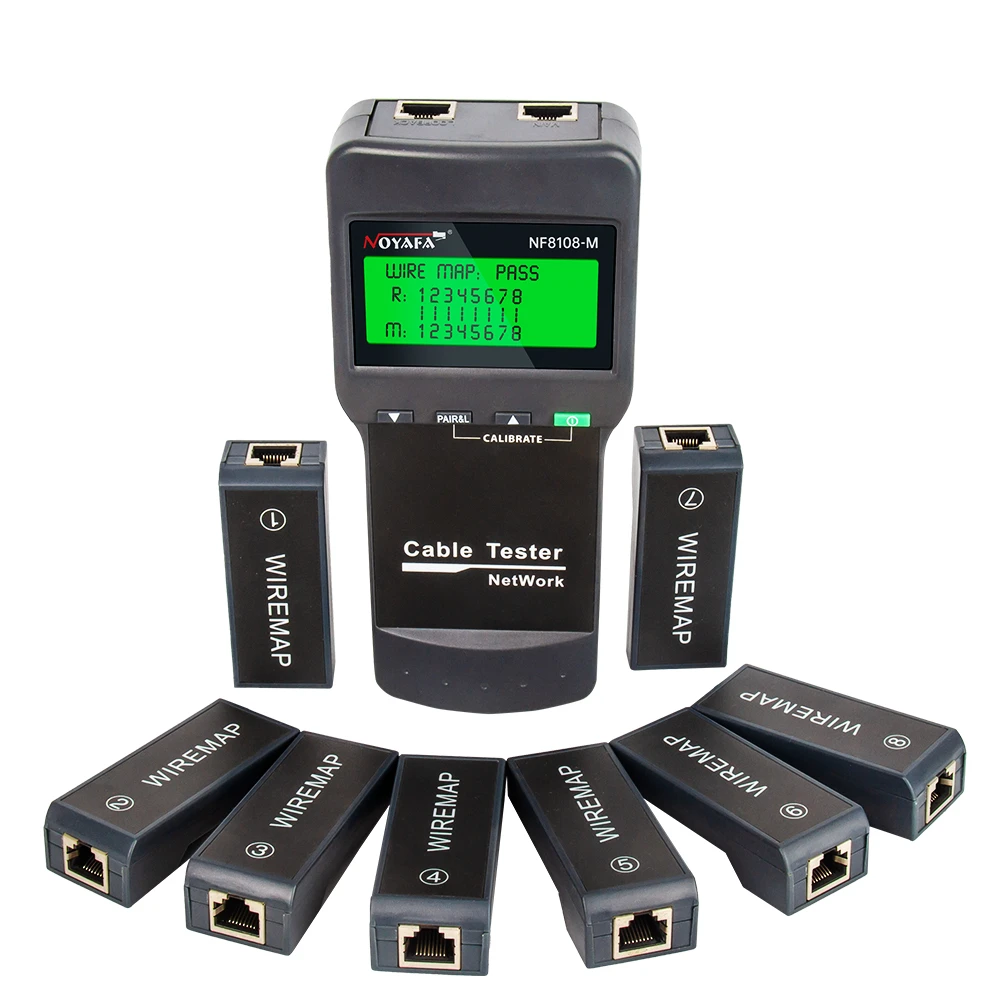

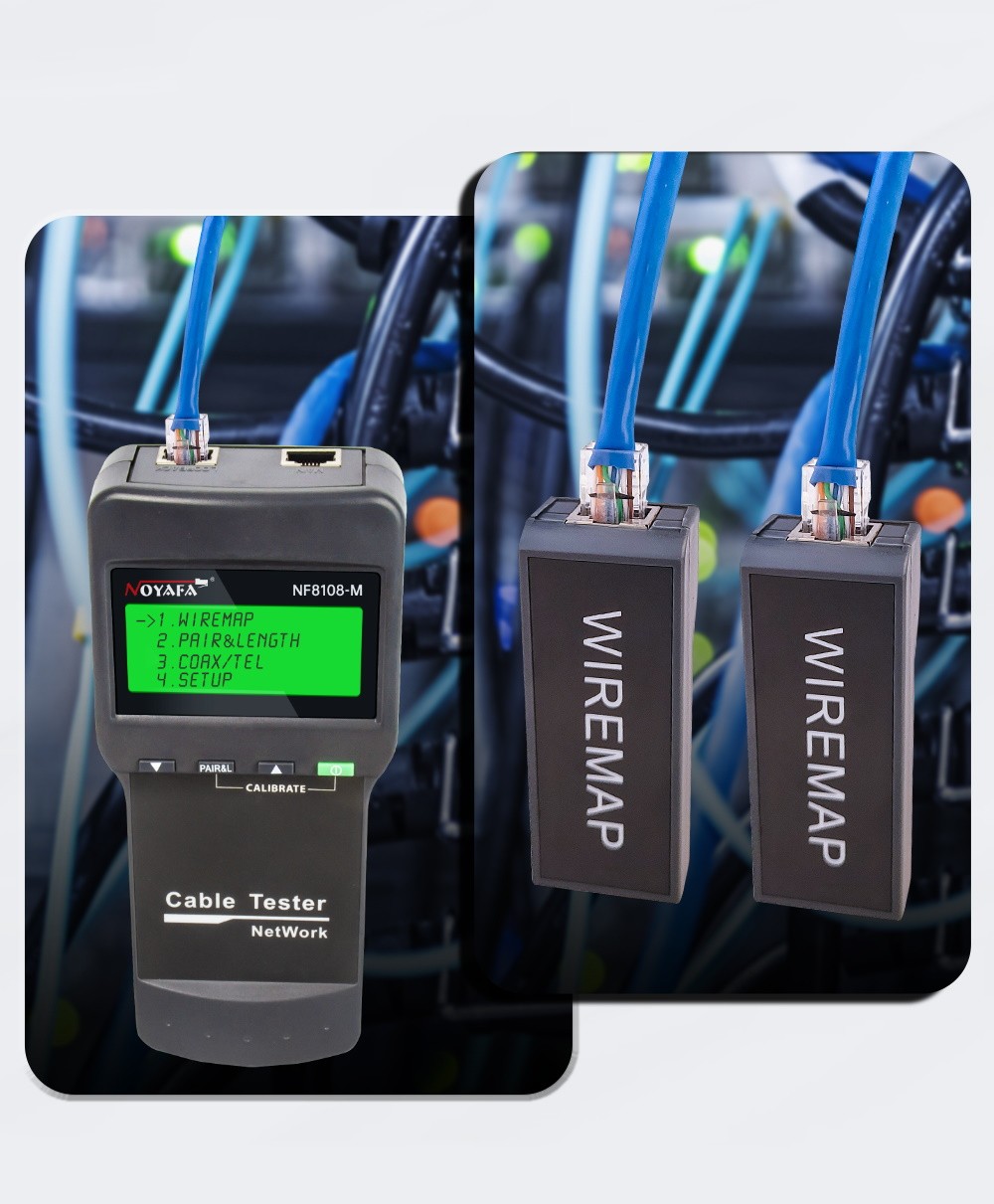

In addition to the network tester, 4 remote modules are included to attach the cable at the opposite end, so that TEST-LAN-M-P can test network cables that have already been pulled.
In addition, the TEST-LAN-M-P has an integrated digital tone generator and a gate finder feature to track and identify cables.
Cables configured differently from regular network cables can be “learned” by TEST-LAN-M-P and then tested.
Displays Ethernet port status and can determine speed up to 1 Gigabit (10/100/1000 Mbps).
Can ping routers, DNS servers and other network devices.
Searches the network and maps (folders) all hosts with IP address and finds the host name or MAC address.
Finds yourself the service used (HTTP / Telnet / DHCP / FTP and SNMP).
Has port finder to find the port to which the cable is connected, such as in a switch.
The connections in the cable appear in a pin-to-pin format.
The tester even recognizes the remote units by ID numbers 1 - 4.
Tester Cat. 5, 5E, 6 and 7 network cables. Other cables can be created by calibrating the conductors.
Tone generator function sends a single or double tone on all legs, choose from 4 tones.
Low battery indication and auto power off screen for power saving.
Can test the voltage level on telephone lines to ensure against possible surge.
Test length for cables: 1 ~ 300 meters.
Accuracy: ± 2m for cables less than 10 meters, ± 5% for cables greater than 10 meters.
Portable Field Strength Meter (100 MHz ~ 6 GHz)

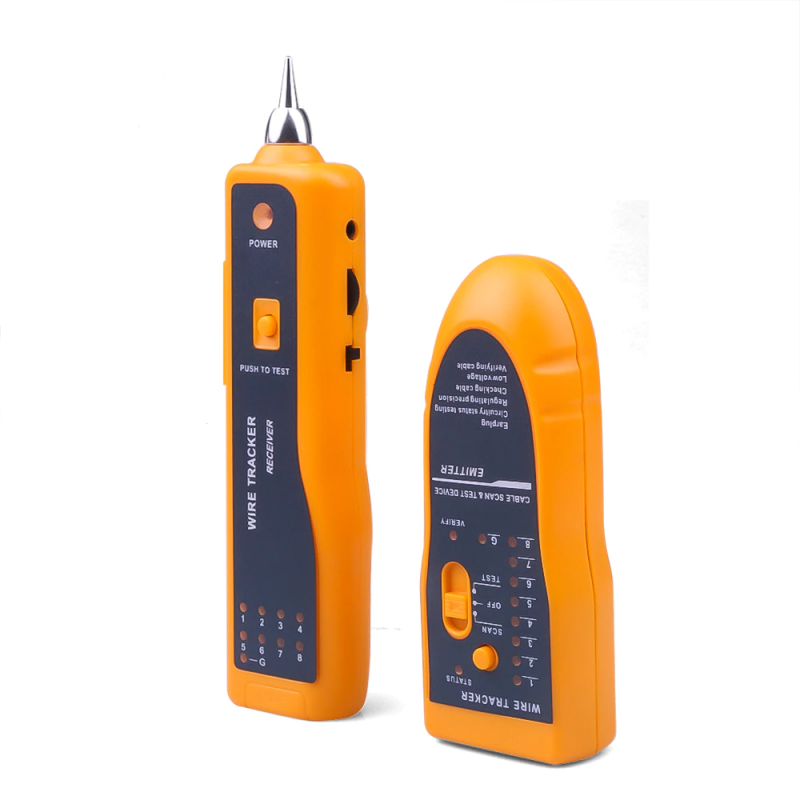

Test the connection for each wire in a network or telephone cable
Battery: 9V (not included)

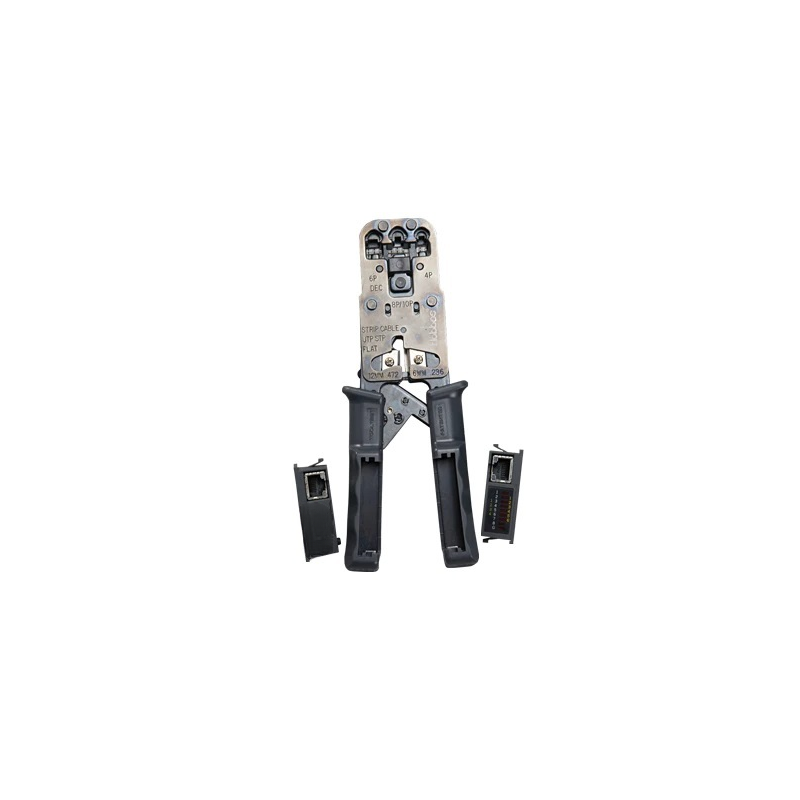

Cable insulation and crimping cable
Cable termination of RJ11, RJ12 and 8 pins RJ45

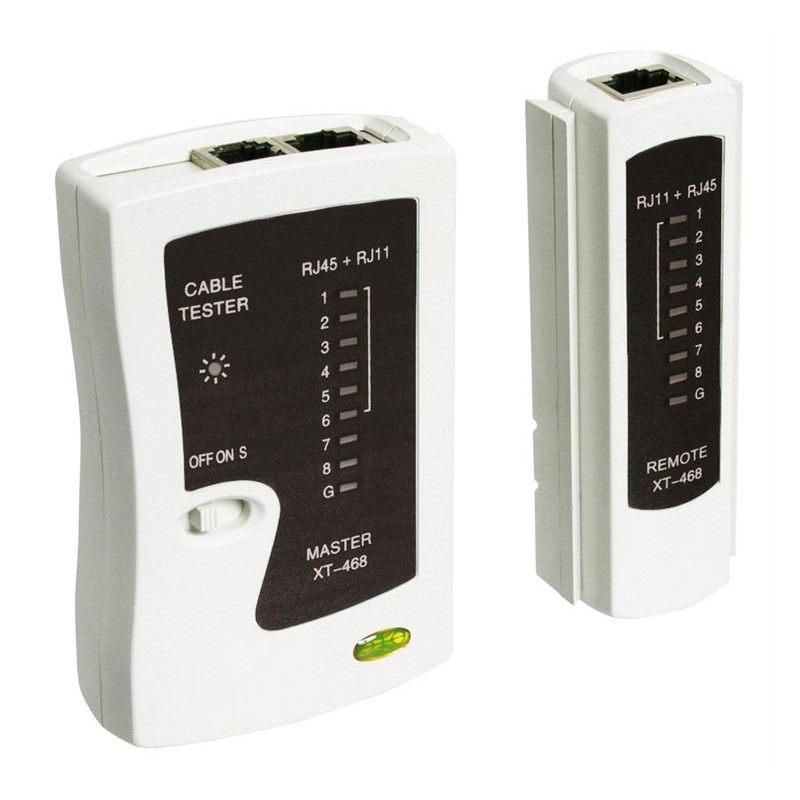

Cable review tests with LEDs included

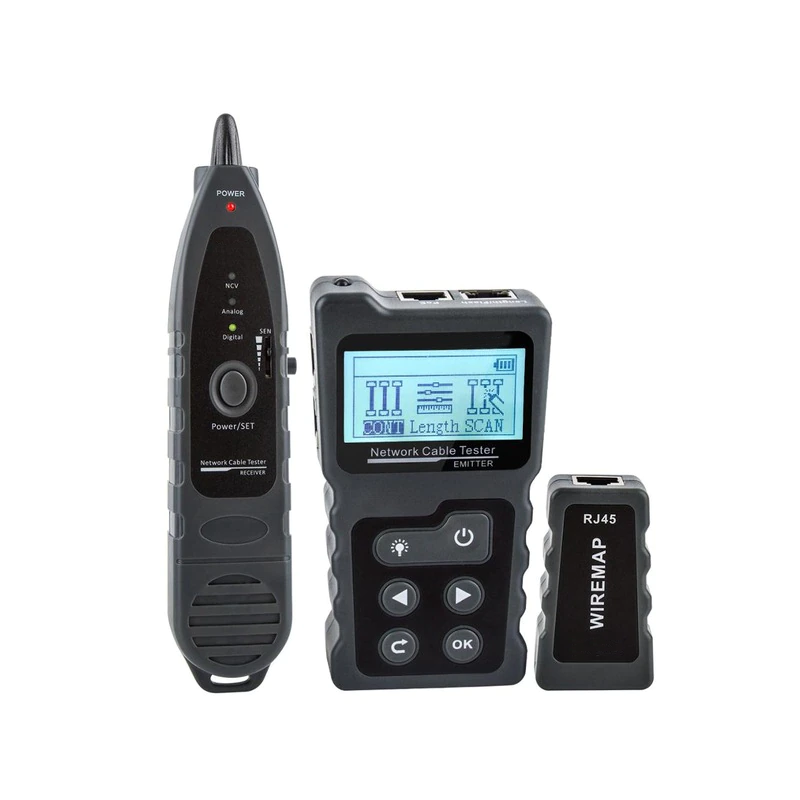

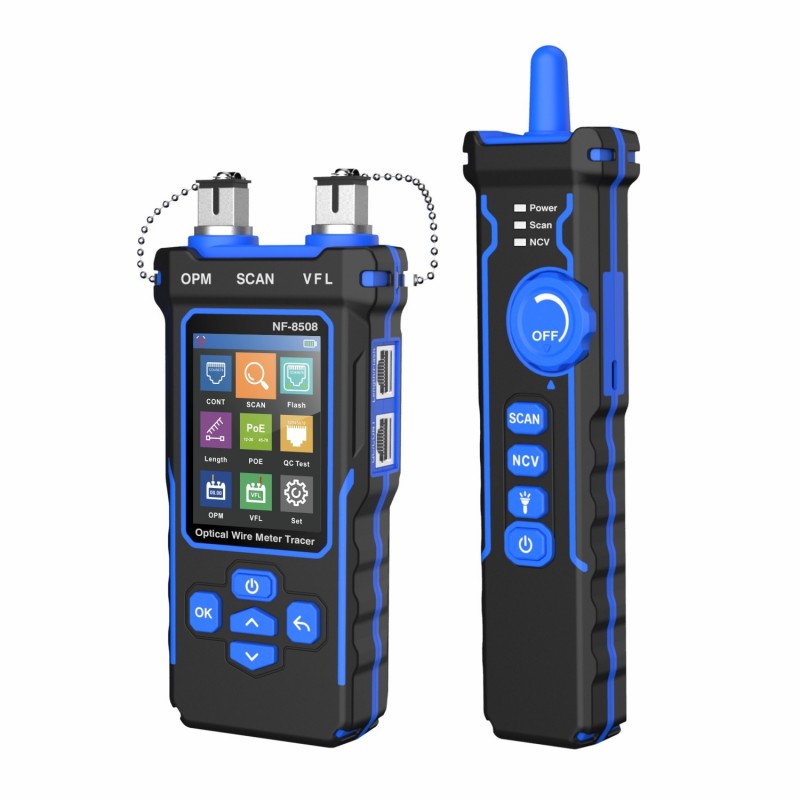

PoE 802.3 at/af type a/b and non-standard PoE 5~60V
Measurement of cable length (2.5 ~ 200m). Accuracy: ±1.6m
Continuity test: Shows diagram of the conductors in the cable. Range: 600m
With special flash sequence, switch port can be identified
Can show speed on switch port.
Can show auto negotiate on switch.
Scan: Sends a tone over the cable that can be intercepted. Makes it easy to find the right cable, among other cables.
Battery: 3 x AAA, 1 x 9V (not included)
