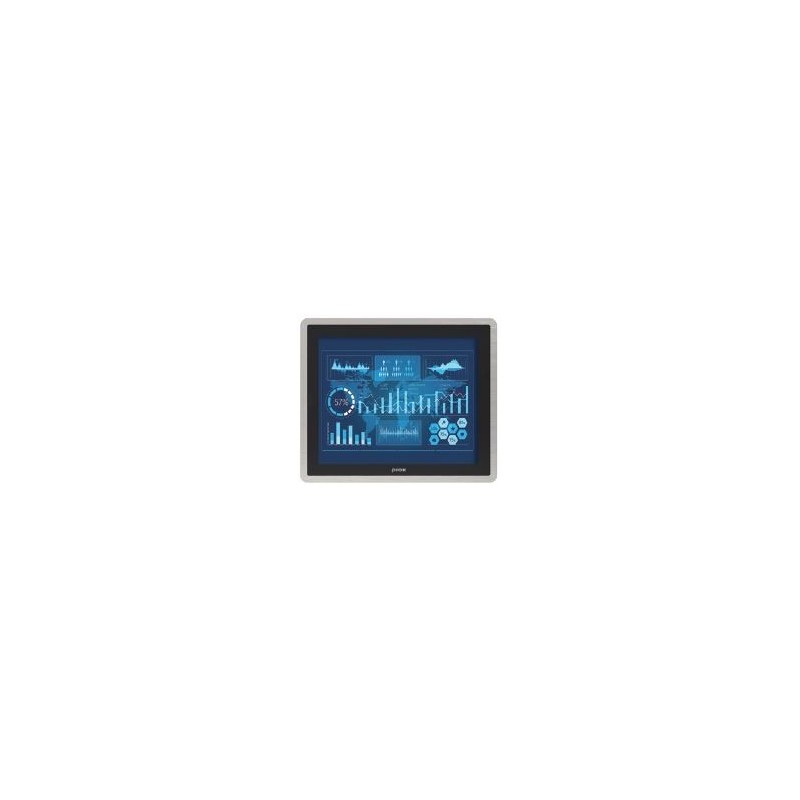

17" Panel PC, Steel front, 7th Gen. i3/i5/i7/Celeron, RAID, 1xPCIe (x16) expansion, 4xCOM, Resistive Touch,

17 "TFT LCD (LED) resolution 5:4 1280x1024 FLAT PANEL
Intel® 7th Gen. Core™ I7 / I5 / I3 / Celeron®
Resistive touch. (option: Capacitive /projected)
8 x USB
2X DVI-D
4 COM ports
2 x DDR4 2133MHz SO-DIMM memory Up to 32 GB
2 x 2.5 "SATA III SSD with software raid 0.1 (Q170) / Without software RAID 0.1 (H110)
1 x Mini PCIe slot
1 x PCIe (X16) Slot ½ length
2 x GBE LAN, Support Wake-on-LAN, PXE
AC Input ATX 250W
OS Support Windows 10 IOT enterprise (64 bit)
Front panel IP65 Protection
Removable HDD / SSD Drive Bay
Wall mounting, VESA 75/100, Panel mounting

IPP17I+PCIE+STEEL
Call +45 56 66 20 20 for price
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Rigitg Industrial Panel PC to BLA. the food industry. Can be supplied complete with CPU, RAM, SSD OS installed. Standard delivery is with Resistive Touch (Capacity OR Projected option)
Contact us regarding. options.

CPU
Core i7-7700T, i5-7500T, i3-7101TE, Cel. G3930TE
Chipset
Intel Q170/H110
LPT
1 x Parallel port (SSP/EPP/ECP)
Antenne
2 x antenne holes (no antennea incl.)
Approval
CE/FCC
Dimensioner
436x368x102,55mm (WxHxD)
Driftstemperatur
Operating Temp. HDD: 0°C~45°C (32°F~113°F) (Ambient with airflow) SSD: 0°C~50°C (32°F~122°F)
Ethernet
2 x RJ45 ports LAN 1: Intel® PHY I219LM (10/100/1000 Mbps) LAN 2: Intel® LAN 210AT (10/100/1000 Mbps) Support Wake-On-LAN, PXE
Hukommelse
3xDDR4 2133MHz So-DIMM (max 32GB)
IP-Tæthed
IP65 FRONT ONLY
LCD
17" TFT LCD (LED) 5:4 SXGA
Lyd
1 x Line In / 1 x Line Out / 1 x Mic In
Compositions
FRONt Stainless steel
Montering
Panel Mount, Wall mount, VESA 75/100
mPCIe
1x Half size
Opløsning
SXGA 1280x1024
OS SUPPORT
Windows 10 IoT enterprise (64 bit)
Porte
4 COM ports COM 1 for RS-232/422/485 COM 2/COM 3/COM 4 for RS-232 COM 1/COM 2/COM 4 support +5V/+12V/RI selectable
Storage
2x2.5" SATA III HDD/SSD (suport RAID 0/1 in q170 SKU ONLY)
Touch
Resistive touch. (option: Capacitive /projected)
Udgange
2 x DVI-D
Udvidelser
1 x PCIe (x16)
USB
4xUSB 3.0, 4x USB2.0
Weight
9.1 KG
Watchdog
1~255 sec. timer selectable
