RFID tag designed as adhesive piece of white, round, 125kHz EM
125 kHz RFID TAG
Dim: Ø25 x 3 mm
TAG is waterproof

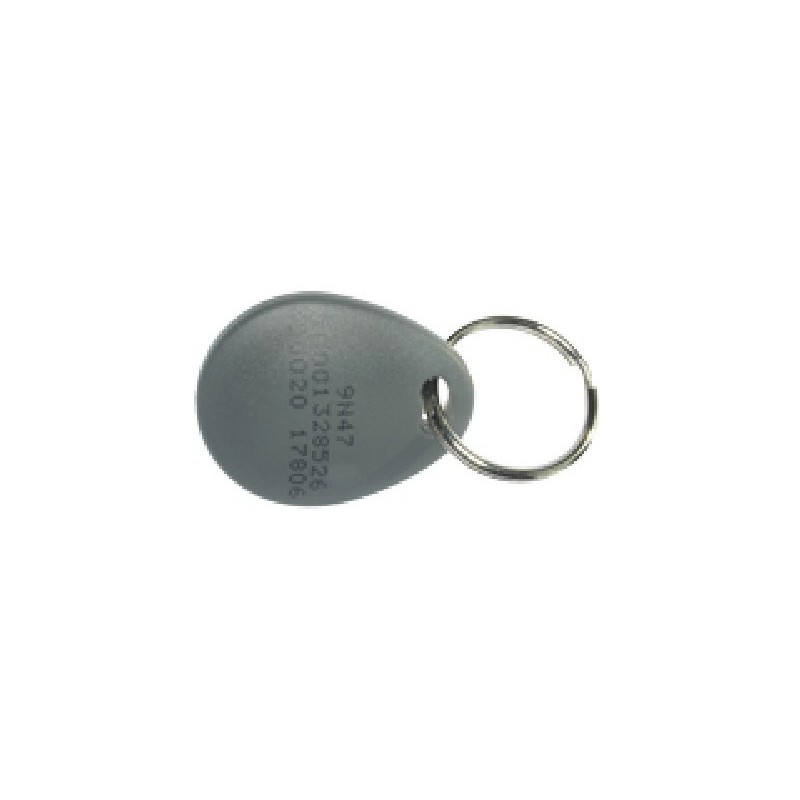

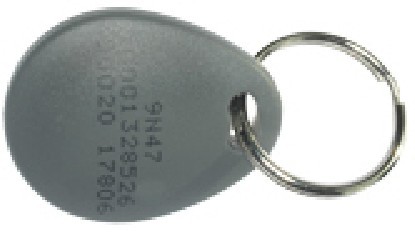

125kHz RFID TAG
For key ring
Dimensions: 37 x 30 x 8 mm
with printed UID code
TAG is waterproof
The most frequently used 125 kHz transponders – also called TAGs – are of the "read only" type - i.e. they are provided with a unique ID code of up to 40 bits during fabrication, which cannot be changed.
TAGs are available in a range of different designs. For example. round pieces in various sizes and formats, as key tags and as credit cards. Only the most popular types are shown here.
125 kHz RFID TAG
Dim: Ø25 x 3 mm
TAG is waterproof
125kHz TAG
rectangular, transparent plastic
Dim: 20 x 25 x 0.7 mm
TAG is waterproof
125kHz RFID TAG with screw hole
50 mm diameter x 2.5 mm
Suitable for guard rounding as a checkpoint
ASK 64 bits,
Manchester encoding; 10 digits in HEX
With RFID, the code reads Decimal: 12 digits
125kHz RFID TAG as bracelet
diameter: 68mm
Blue (red on order - Contact us)
Net weight: 9.3 g
EM Standard: TK4100, ICODE2 chip
material : Silicone
operating temperature -40 - + 100ºC
storage temperature -40 - + 120ºC
