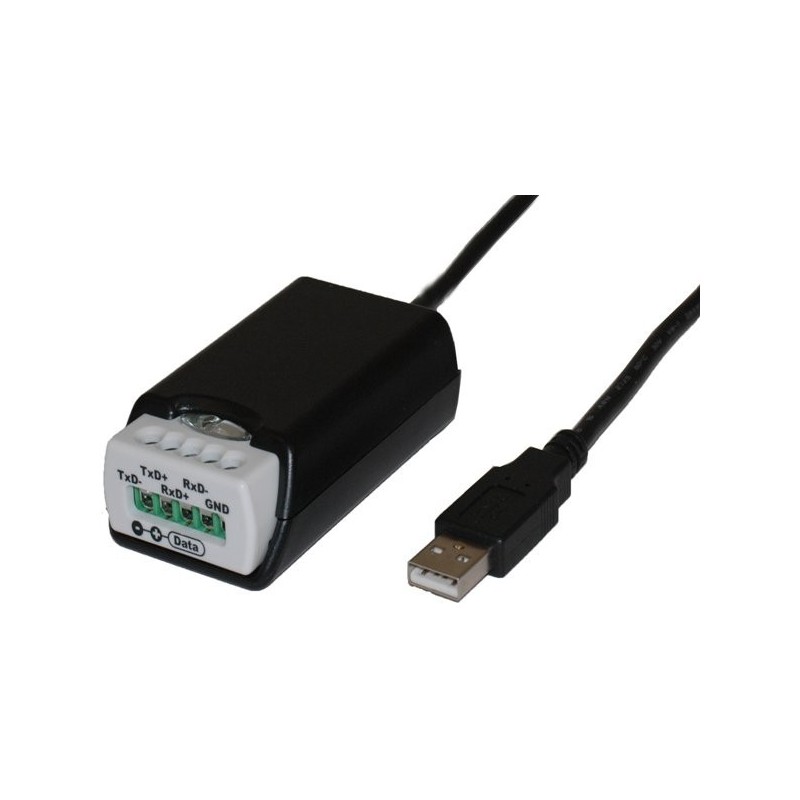

USB to 1 x RS422 / RS485, w/ screw terminal
Max speed up to 921.6 Kbit/s - RS422 / 485 port
Select type of port from DIL switch and jumper
Default set to RS422
Supports Win10
Conversion from RS422 to RS485:
S1 to ON
S2 to OFF
S3 to ON (No echo)
Jumper from right to left seen from the cable end:
1-2 is 120 ohms - move forward
4-5 is bias to D+ - move forward
7-8 is bias to D- - move forward
Remaining must be disabled (Do not move)
USB to serial converters are ideal for use where serial ports are not available, for example on newer laptops and desktop PCs/servers. This can be a significant saving compared to having to convert RS485 systems to USB. All models are supplied with a loose or mounted USB cable. The converters support both OHCI (Open Host Controller Interface) and UHCI (Universal Host Controller Interface) and certain models have optical isolation up to 2000V. Maximum speed up to 921.6 Kbit/s on the RS422/485 port
