Isoleret RS485 repeater til DIN-skinne montage, optisk isolation
Isoleret RS485 repeater til DIN skinne

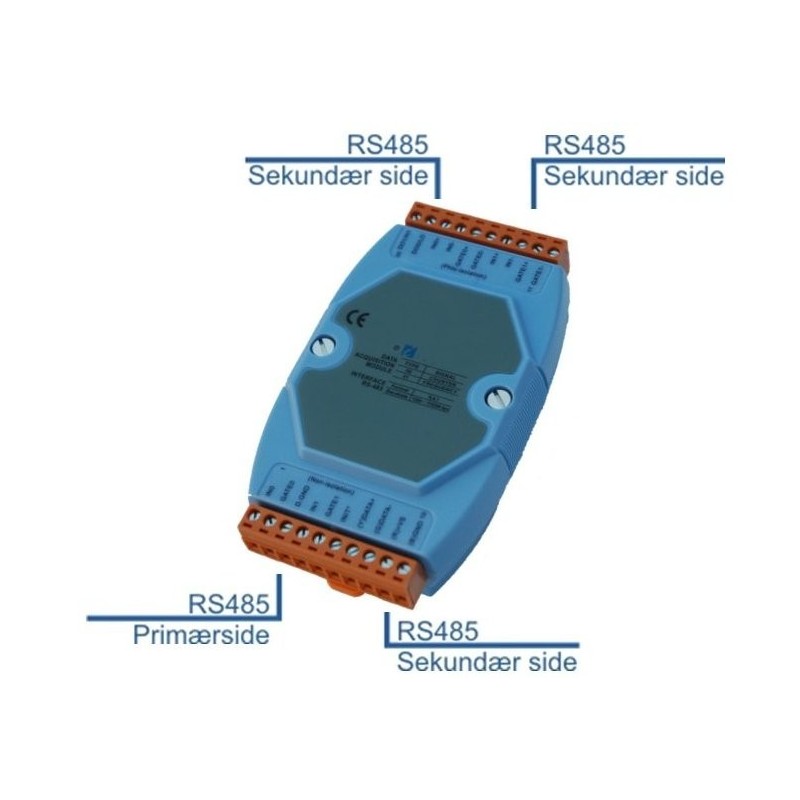

Repeater and splitter of an RS485 signal
Up to 3 branches, as a star connection
It is very IMPORTANT to avoid bus reflections.
Use M485-REP3-I if the RS485 bus is to be split out
For DIN Rail mounting
Isoleret RS485 repeater til DIN skinne
Optoisolerated RS422 / RS485 Repeater
3000vdc Glavanic isolation
2 threads RS485 is half duplex (switch-talk)
4 threads RS485 / RS422 A full duplex (both ways at the same time)
Translator from RS422 (4-wire) for RS485 (2-wire), semiduplex
automatic directional change and baud rate.
Industrial RS422/RS485 Serial Converter/Repeater with 2 KV Isolation, MOXA TCC-120i
Boost serial signal to extend transmission distance
Boost RS422 or RS485 signal, or convert RS422 to RS485
2 KV optical isolation protection
15 KV serial ESD protection
Wall or DIN-rail mounting
Terminal block for easy wiring
Power input from terminal block
DIP switch setting for built-in terminator (120 ohms)
Repeater and splits an RS485 signal into 4 branches
RS485 master on input polls RS485 slaves with ID
Only asked RS485 slave responds only to master
No RS485 slave can poll the RS485 bus
2-wire RS485 - semi-duplex
Extend the star bus with more M485-REP4-I
Supply: 10 - +30VDC
Temp: -25 - +75°C
For DIN-Rail mounting
