1-wire transmitter for Pt100 temperature sensor, 2-3-4 wire sensor, -200 - +850°C, cascade coupling

1-wire communication - 2 x RJ11 connectors for daisy chain connection
2 - 3 - 4 wire Pt100 temperature sensor - 4 wire is recommended.
Built-in A/D converter with compensation
24 bit resolution for temperature measurement
Calibrated digital output
Excellent long-term stability
Each sensor has its own unique 64 bit serial number

TST200
1,200.00 SEK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

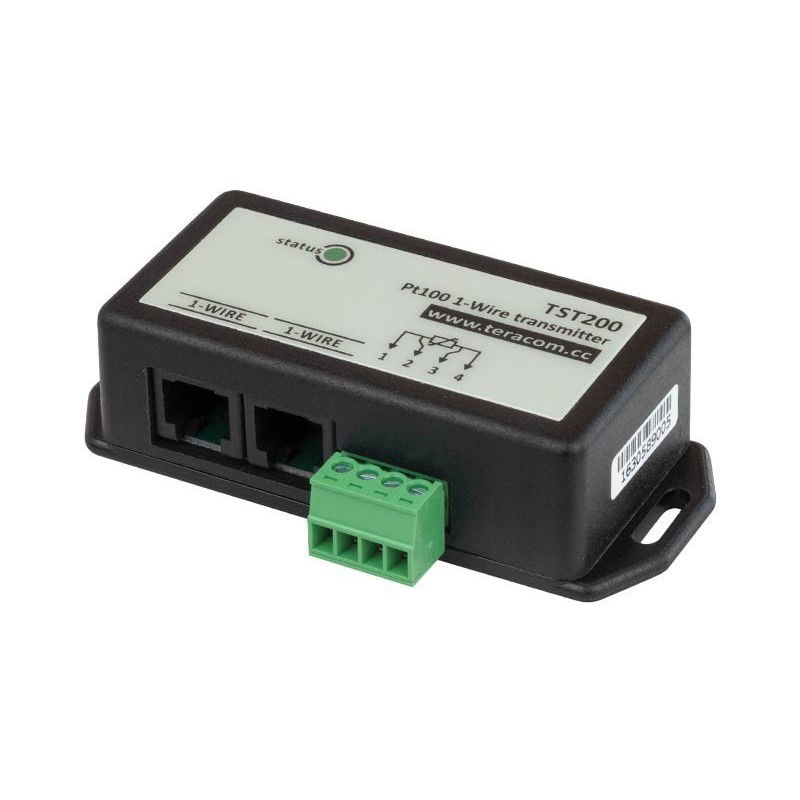

TST200 is a Pt100 transmitter with 1-Wire Interface. It is designed to connect Pt100 temperature sensors to TCW2xx and TCG1xx controllers to build temperature monitoring systems in -200 to +850 ° C (-328 to 1560 ° F) range. The 1-Wire Pt100 transmitter incorporates a precision, 24-bit, an analog-to-digital converter (ADC) and further digital signal processing to ensure accurate drift free performance.
RTD (Resistance Temperature Detector) commonly referred to as Pt100 is one of the most popular temperature sensors used in industry. In principle, the sensor can be connected with 2, 3 or 4 wires. The more wires are used, the more accurate the measurement is. The difference becomes significant at the longer distance. The 4-wire connection is highly recommended.
TST200 has two RJ11 connectors, for easy daisy chaining 1-Wire bus.
