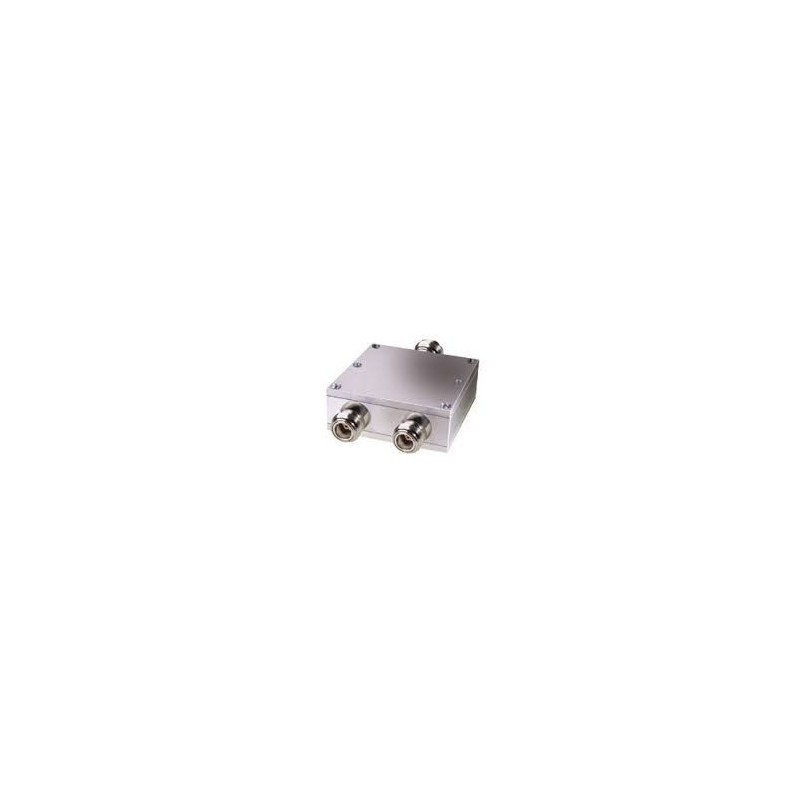

2 Way Power Splitter / Combiner
Kan splitte radiosignalet til 2 antenner
Ofte anvendt til Panel-antenner
1 dB insertion loss
Features
wideband, 5 to 2500 MHz, useable from 0.5 to 3000 MHz
low insertion loss, 1.0 dB typ.
excellent amplitude unbalance, 0.2 dB typ.
excellent phase unbalance, 2 deg. typ.
rugged shielded case Applications
VHF/UHF/Wifi
Tilbehør: 1 stk. justérbart beslag til WLAN-PANEL8 og 12
Beslag til montage af WiFi antenner
Converting cable from CRC9 to N
Suitable for connection of external antenna for router
RG174, 50 Ohm
100dB per 100meter at 2GHz
CRC9 male
N male
2 meters
Mounting bracket for omni antennas, double
For 50mm pipe diameter
4 pcs. pipe clamp
2 pcs. steel braces
4 pcs. nuts and washers
2 pcs. screws for fixing the antenna
