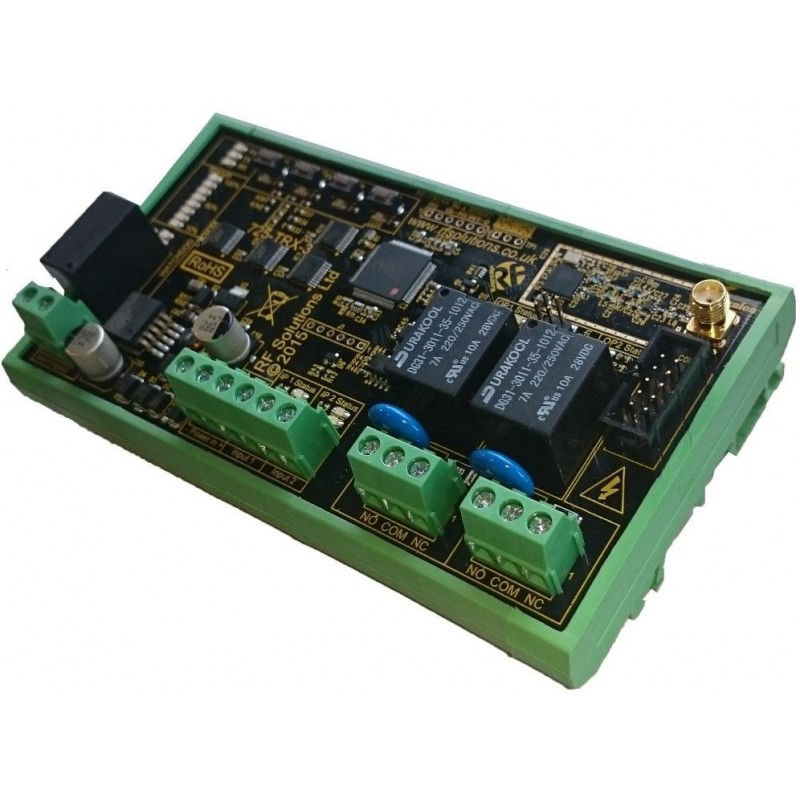

2 channel radio module, transmitter and receiver for the transmission of digital signals. 2 x DI and 2 x Relay. 868 MHz

868MHz Transceiver with 2 x Dry input, 2 x Relay
2 relay outputs, 250VAC/5A, 12V/10A
2 contact inputs, end contact so-called dry contact
Up to 1000 meters in range with gain antenna
Rubber antenna included
Watchdog function
Supply voltage: 12 - 32VDC

DIO-TR725
3,505.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Wireless transmission of digital signals via radio signals. combined transmitter/receiver for the 868 MHz frequency band
The modules are easy to install and fit on standard DIN rails.
Several transmitters can be combined into one receiver (max. 16 transmitters where 1 channel is active per transmitter unit). It is possible to have several receivers for a transmitter.
Watchdog function that keeps an eye on whether a signal is coming from the module. If it does not appear, an output on the module will change state.

Remember that 2 pieces must be used. to a wireless connection

Supplied with 2dBi rubber antenna

Antenne
SMA hun
Dimensioner
136 x 78 x 42mm
Forsyning
12 til 32 V AC eller DC 2 W
Indgang
2 stk. for sluttekontakt
Rækkevidde
op til 1000 meter ved frit sigte
Tilslutning
Skrueterminal
Udgange
2 stk. relæer maks. 250 volt AC 5 A eller 30 volt DC 10 A
