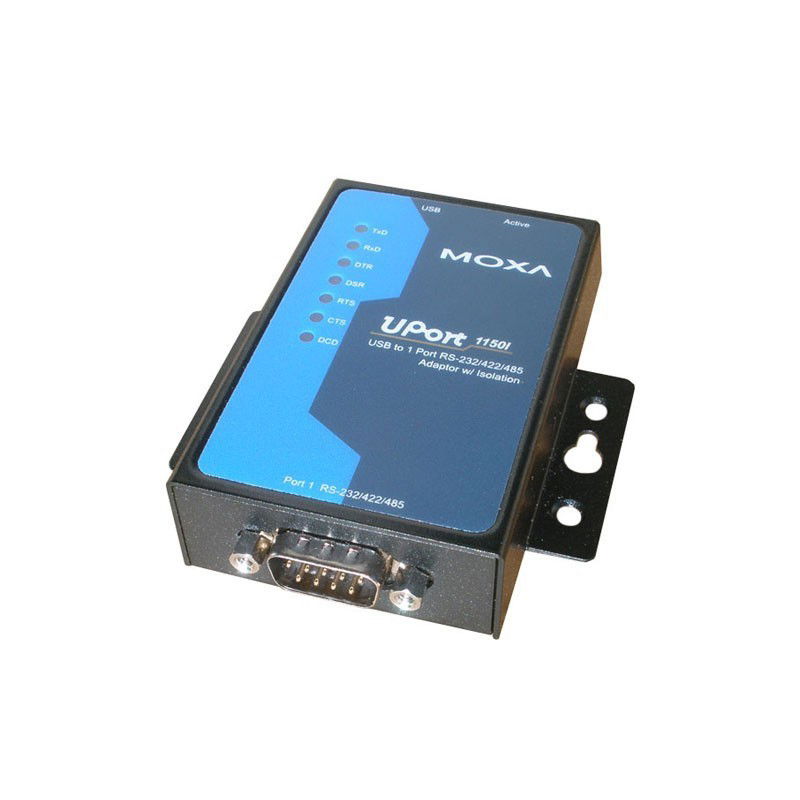

USB to 1x RS232/422/485 converter, MOXA UPORT 1150I

Compliance: USB 1.0/1.1 compliant, USB 2.0 compatible
12 Mbps USB data rate
Baud rate: 50 bps to 921.6 Kbps
Drivers provided for Windows, WinCE, and Linux
Serial Standards: RS-232/422/485 Connector: DB9 male
LEDs for indicating USB and TxD/RxD activity
Optical Isolation: 2 KV
OS support: See in Description
Windows 11 support
Linux Support : Linus 2.4.x, 2.6.x, 3.x

CNV-USB-SER9+MIU-I
3,136.00 SEK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Connector: USB type B
Speed: 12 Mbps (Full-Speed USB)
Number of Ports: 1
ESD Protection: 15 KV embedded


Flow Control: RTS/CTS, XON/XOFF
FIFO: 64 bytes
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-4w: TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND
RS-485-2w: Data+(B), Data-(A), GND
RS-485 Data Direction: ADDC® (Automatic Data Direction Control)

Windows Drivers: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP
 Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT

Windows Embedded CE 5.0/6.0
Weight: 75 g
Dimensions: 52 x 80 x 22 mm
Operating Temperature: 0 to 55°C
Storage Temperature: -20 to 70°C
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Consumption: 260 mA @ 5 VDC
