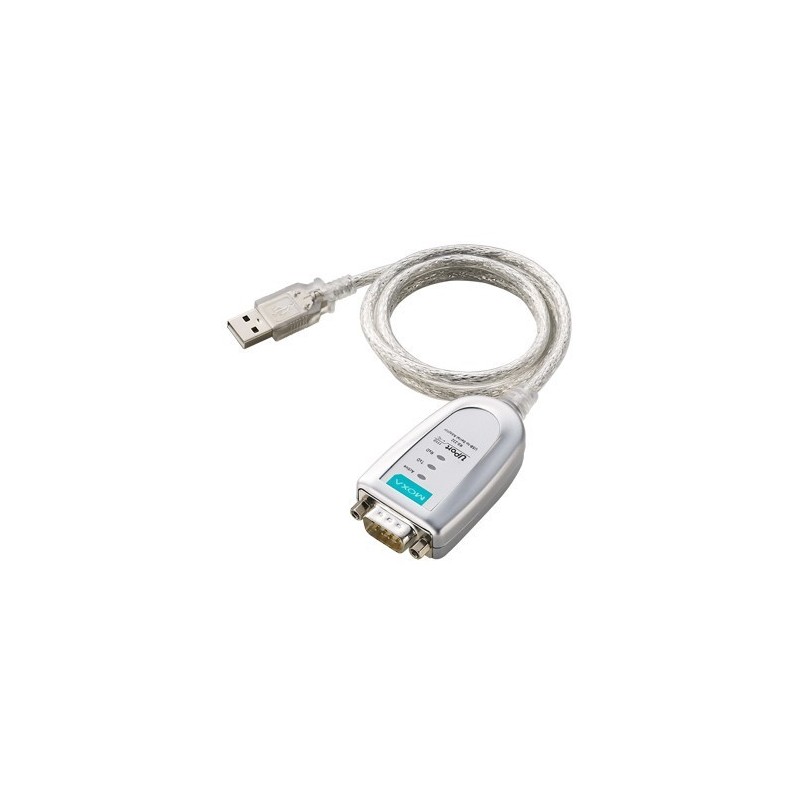

USB 1 x RS232 adapter, DB9 male, USB2.0, MOXA UPORT 1110

MOXA, 1-port RS-232 USB to serial adapter.

Compatible with USB 2.0 and 12 Mbps USB data rate
921.6 Kbps maximum baud rate for super fast data transfer
Drivers are provided for Windows, WinCE and Linux
DB9 male. USB2.0 with 80cm cable
LEDs for displaying USB and TxD / RxD activity
15 KV ESD protection for all serial ports
OS support: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT

CNV-USB-SER9+M
575.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Compliance: USB 1.0 / 1.1 compliant, USB 2.0 compliant

Plug: USB type A

Speed: 12 Mbps (full speed)

number of ports: 1

Serial standards
UPort 1110 RS-232

Plug: DB9 male

Operating Systems: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT

Operating temperature
0 to 55 °C (32 to 131 °F)

Power consumption
UPort 1110 30 mA @ 5 VDC

Includes
1 x UPort 1100 Series unit
1 x support CD/DVD
1 x installation guide
1 x warranty statement
