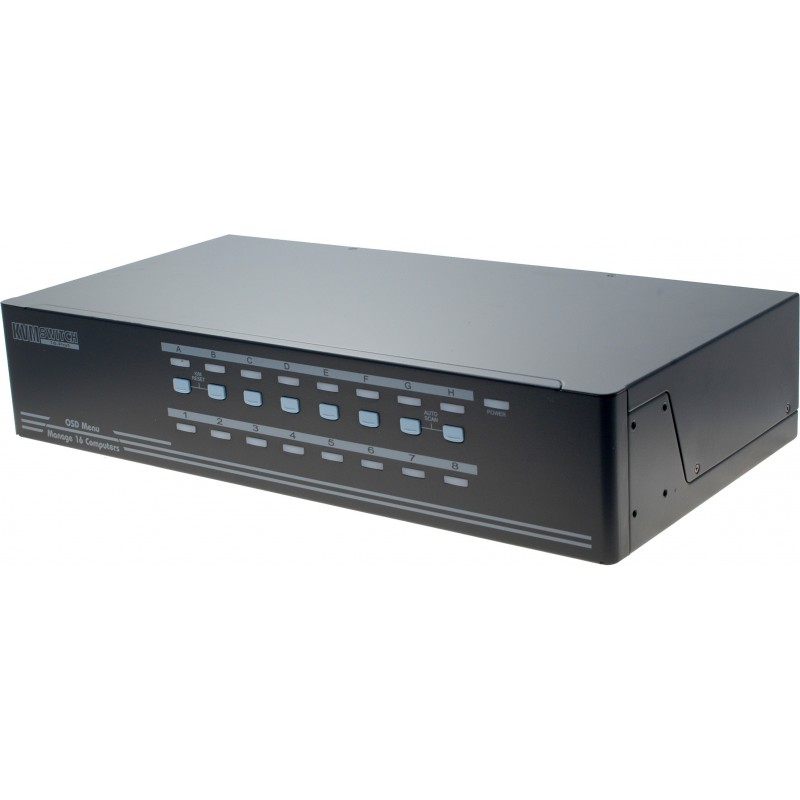

16 Ports KVM switch, VGA, USB with OSD

The 16-port KVM switch with OSD
Resolution up to 1920 x 1440, VGA
16 pcs. combi cables at 1,8m for PCs included
Supports USB and PS2 Mouse and Keyboard
Switching with Hot-key commands
2-way audio
Daisy chain several KVMer up to 136 PCs / Servers < br> Independent of OS16 port KVM switch with OSD

SW16KEYMON-UR
8,894.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

SW16KEYMON-UR is a 16-port VGA KVM switch with 2U-height, audio, OSD and shortcut keys supports, max. solutions up to 1920 x 1440, built-in automatic scan, password lock function for filtration of unused computers and locking unauthorized Computers, DDC2B compatible, allow 8 computers to share a single USB and PS / 2 console, max. Up to 64 computers through cascade control. It is an ideal solution for factory, office, server rooms, etc.

  • USB and PS / 2 interface supports both console and PC page
  • cascade configuration expands the system's capacity
  • USB Audio function supports
  • 1U - height form factor saves rack sites
  • unique cables for secured connection
  • Auto-scan function automatically selects the computer sequentially
  • assigns computers with unique and meaningful names
  • identifies and selects computers by the names
  • programmable scan filters unused computers
  • saves system settings and names in flash memory
  • Password safety locks the computer from unauthorized access
  • Complete control of user-friendly OSD interface
  • Shortcut key functions provide easy access to computer
  • Keyboard modes are stored and restored automatically under Change of Computer
  • The operating system is independently and transparent for all applications
  • plug-and- Play System Configuration
  • supports screen resolutions of up to 1920 x 1440
  • DDC2B compatible
  • supports Sun keyboard control
  • Built-in power (optional) < / li>
Andet
Hot Plug, tilføj eller fjern computere uden at slukke for omskifter. Skift kan foregå med knapperne på front eller via Hot Key (med en bestemt taste-kombination) på tastaturet
Andet
Kaskade op til 136 pc/servere i Daisy Chain (9 KVM-omskiftere)
Dimensioner
88 x 433 x 180 mm (H x B x D)
Forsyning
100 ~ 240 VAC
Kabel
16 stk. 1,8 m lange KVM kabler med VGA og USB samt 32 stk. 1,8 m lange audiokabler med 3,5mm jack-stik medfølger. Se tilbehør for PS/2- og længere kabler.
Lyd
To 3,5mm jack-stik pr. pc tilslutning med audio ind- og udgang
OSD
Skærmmenu (OSD), med mulighed for navngivning af tilsluttede pc’er samt password beskyttelse (Engelsk tegnsæt)
Skærm
VGA, maks. 1920 x 1440 punkters billedopløsning
Stik
16 x KVM porte (KVM-kabel kræves til hver port)
Tastatur/mus
USB eller PS2 (tastaturet emuleres)
Type
16 ports KVM-omskifter (Keyboard Video Mouse) med en bruger
Understøtter
Windows 2000, XP, Vista, Win7, Win8, Linux, Mac og Sun
