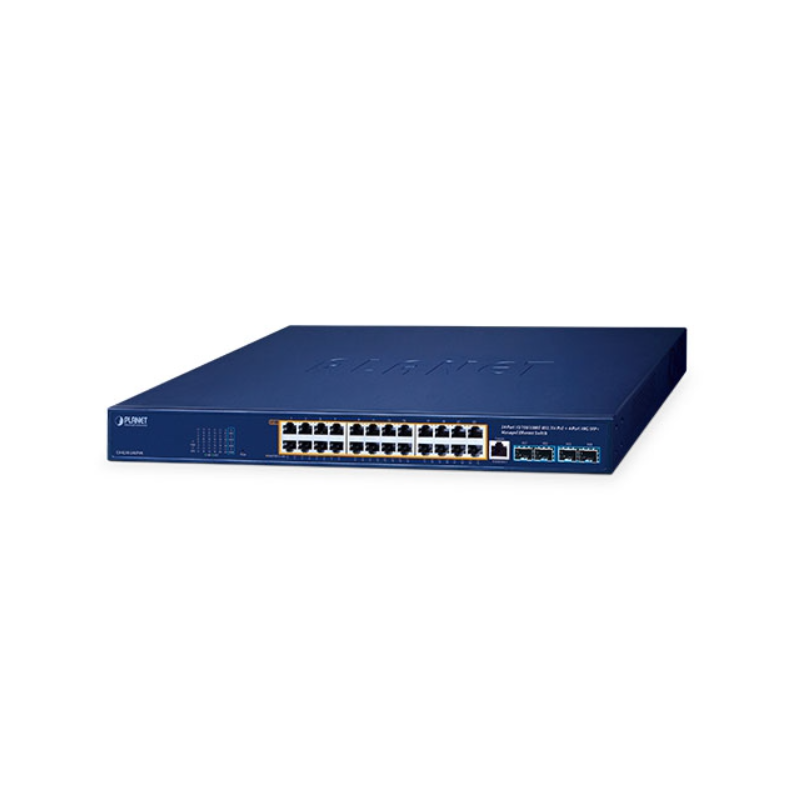

24 port Managed switch 24 x 10/100/1000Mbit RJ45. Fiber 4 x 100/1000/2500Mbit/10G SFP slot, PoE++ (PoE Ultra 90W). 230 VAC

Managed Industrial switch. 24 x RJ45, 4 x SFP
24 x 10/100/1000Mbit RJ45 ports PoE++
IEEE 802.3at/af/bt - Ultra PoE (90Watt) end/mid-span
Total PoE power is 775W
4 x 100/1000/2500Mbit mini-GBIC / SFP slots, Combo with 4 Gbit RJ45 SFP
10GB SFP
VLAN - IEEE 802.1Q tagged VLAN
VLAN (Q-in-Q) - IEEE 802.1ad
Protocol VLAN, Voice VLAN, Private VLAN, Management VLAN, GVRP
IGMP snooping v2 and v3
MLD snooping v1, v2
Port security for source MAC address filtering
DHCP snooping to filter unwanted DHCP messages
Dimensions: 440 x 300 x 44 mm (1U)
Weight: 4.4 kg
Supply voltage: 100 - 240VAC

ESW24SFP4-POE++
8,546.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

24 POE ports with built-in 802.3bt type-4 POE 90W or ULTRA POE 95-WATT Injector function
PoE Power budget is 720 Watt

It gives:
7 pcs. 95 Watt PDs or
12 pcs. 60 Watt or
24 pcs. 30 watts
Or a combination of these - however max. 720 Watt

720 Watts, operating temperature Less than 40 degrees C
660 watts, operating temperature between 40 and 49 degrees C
600 watts, operating temperature around 50 degrees C (factory default mode)
