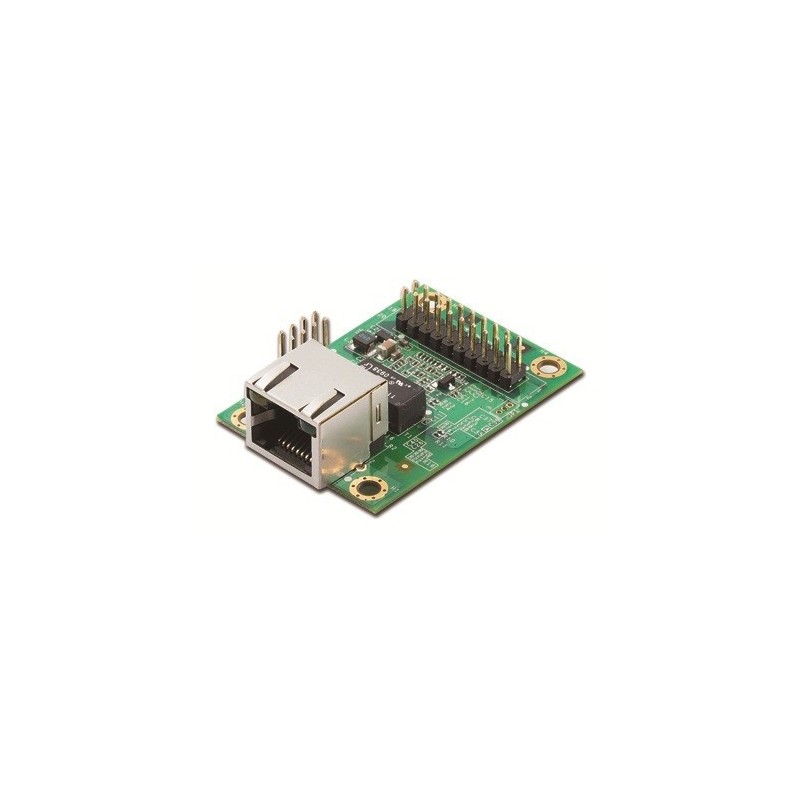

Embedded Device Server 10/100 with RJ45, Moxa Miineport E3

MOXA MIINEPORT E3
10/100 Mbps embedded serial device servers with RJ45
IEEE 802.3af compliant PoE pass-through
Use Moxa’s high quality and reliable second generation MiiNe SoC
Versatile choice of operation modes fulfill specific application requirements
Green design with extremely low power consumption
MiiNePort NetEZ Technology makes integration incredibly easy
Highly compact embedded device module
Support IPv6

ETH1SER-E3
537.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Moxa Miineport E3
10/100 Mbps Embedded Serial Device Servers with RJ45

CPU
32-bit ARM Core
Andet
TTL: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
Dimensioner
35 x 52.5 x 18 mm
Driftstemperatur
0 to 55°C
Flash
2 MB built in
Forsyning
Input Voltage 3.3 to 5 VDC Input Current 157 mA @ 3.3 VDC
Hastighed
10/100 Mbps, auto MDI/MDIX
Hukommelse
4 MB built in
Isolation
1.5 kV built-in
Porte
1
Stik
RJ45 (magnetic)
Weight
12 g
