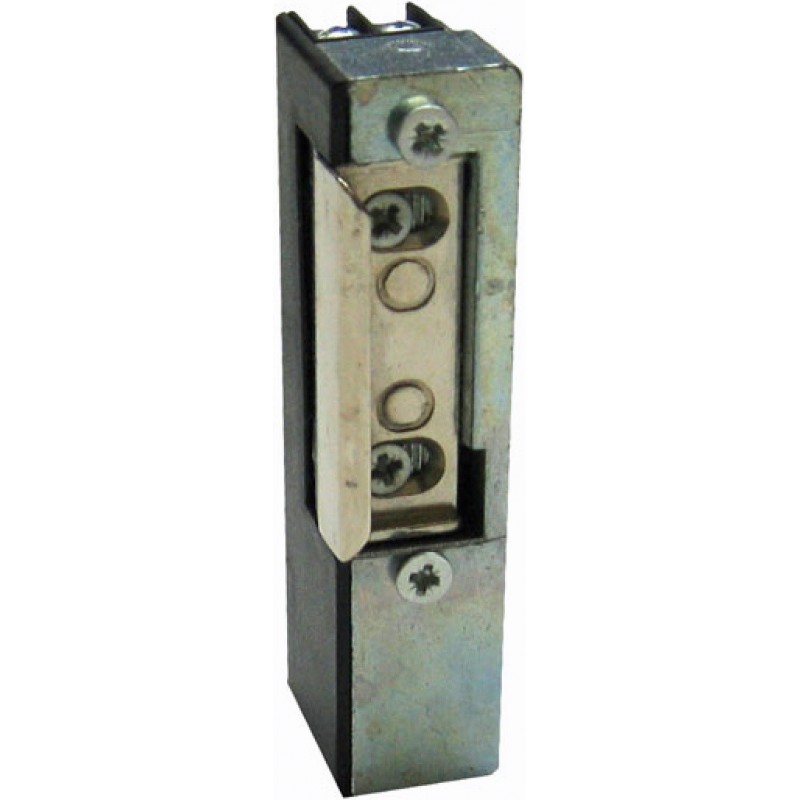

Electric power lock right-handed - current-less locked 12VDC

Electric endplate for frame, adjustable drop, right-handed
12VDC / 200mA
locked at powerless
Holding force: 400kg
Dimensions: 90 x 21 x 28mm

DOORLOCK12HJ
447.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • live_help Ask a question

Standard electrical endplate with fixed or adjustable fall. When the endplate is fully assembled, it is easy to adjust the fall if the door is to bind due to sealing strips or if it "hangs".

All standard electrical outlets are available with or without adjustable fall. Holding force 300 kg. Choose between single or double bar for the lookout.
Active: Locked without tension
Holding force: 300 kg
Page: right
Hand rule: visible hinge on right side = right-handed electrical look)

Supply: 12VDC / 200mA upon activation
Size:90 x 21 x 28 mm (H x W x D)

Forsyning
12/24VDC 200/110mA ved aktivering
