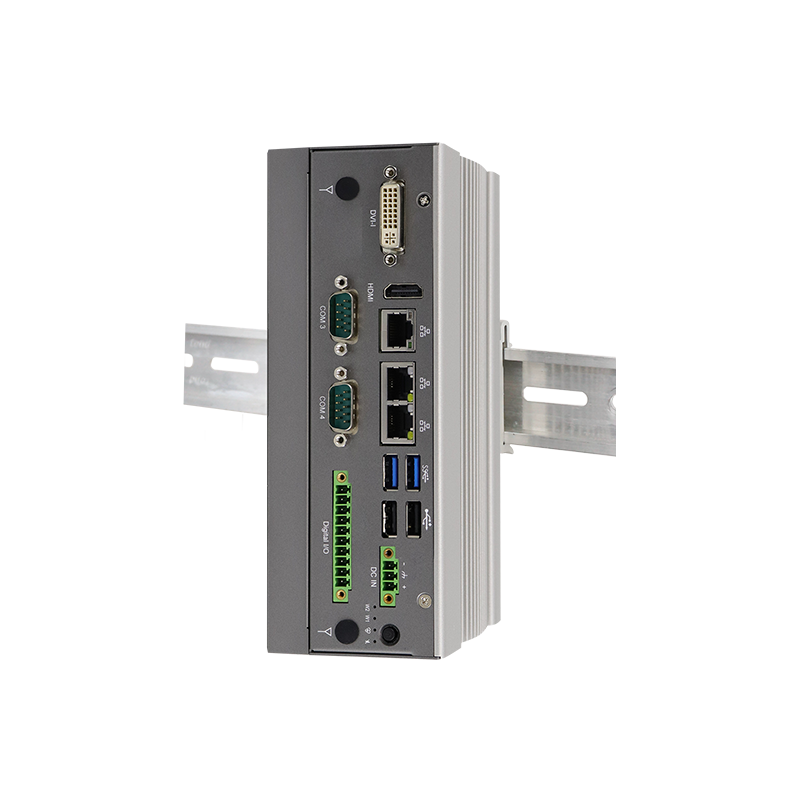

Fanless ATOM PC 2xSIM, DVI, HDMI, 3xEthernet, 4xCOM, -20°C~70°C, DIN or wall mount IOT Gateway delivered up to 15 years

Intel® Atom® x6414RE/x6212RE Processors (formerly Elkhart Lake)
GPIO 4-in/4-out & 1x DVI-I & 1x HDMI
1x M.2 B-Key 3052 support 5G module
Optional 1x 2.5’’ SSD (needs to be ordered)
3x 2.5G Ethernet port
3x full-size Mini PCI-E sockets
4x COM (RS232/422/485)
2x USB 3.1 & 2x USB 2.0
Supports DIN-rail mount, wall mount
TPM 2.0
Extended operating temperature from -20°C to 70°C
9V~36V DC wide-range power input Over/Under/Reverse voltage protection

EPC-ATOM-3E4C4IODIN
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Industrial IOT PC. In the series of our Long Life models with long life up to 15 years!. This is only an example of one of them we have. Contact us if there are special requirements. We can supply all PCS ready for use with us, RAM and SSD installed.

CPU
Intel® Atom® x6414RE (1.5GHz, 1.5MB cache, 9W TDP) or as option Intel® Atom® x6212RE (1.2GHz, 1.5MB cache, 6W TDP)
Andet
2 x antenna hole for wlan module (NOT INCLUDED)
Approval
CE/ FCC/ LVD
Chok/Vibration
Vibration Operating: 2.0 Grms / 5~500Hz / random operation (with IEC 60068-2-64) Shock Operating: 30G/11 ms Duration Non-operating: 40G/11 ms Duration
Dimensioner
218mm(W) x 110mm(D) x 57mm(H) w/ Wall mount kit 8.58”(W) x 4.33”(D) x 2.24”(H)
Driftstemperatur
-20°C~70°C (-4°F~158°F)
Ethernet
3 x RJ45 2.5G Ethernet port
Forsyning
9V-36Vdc, 1x 3-pin DC-in terminal block, 1x power button with Green LED
GPIO
1x 4-in & 4-out GPIO
Hukommelse
1 x 4GB DDR4-3200 SO-DIMM, Max. 16GB
Luftfugtighed
5~90% @ 60°C, (non-condensing)
Lyd
1x Line-out/ Mic-in
M.2
1x M.2 B-Key socket (USB 3.0 + PCI-E)
Materiale
Aluminum & steel
Montering
DIN-rail mounting (DIN-rail mount kit included) Desktop or wall mounting (wall mount kit included)
mPCIe
1x Full-size Mini PCI-E socket (USB 2.0) 1x Full-size Mini PCI-E socket (USB 2.0 + SATA) 1x Full-size Mini PCI-E socket (USB 2.0 + PCI-E)
OS SUPPORT
Win10 and Linux Ubuntu
Porte
4x RS232/422/485
SSD
1x Mini PCI-E slot (mSATA SSD), OPTION! 1x 2.5’’ SSD mount special order!
Udgange
1x DVI-I, 1x HDMI
USB
2x USB 3.1 ports, 2x USB 2.0 port
