PoE power supply via Ethernet cable, up to 30 watts
LAN without PoE input, provides LAN with PoE
For 10/100/1000Mbit network.
Power supply from 100 - 240VAC / 0.6A

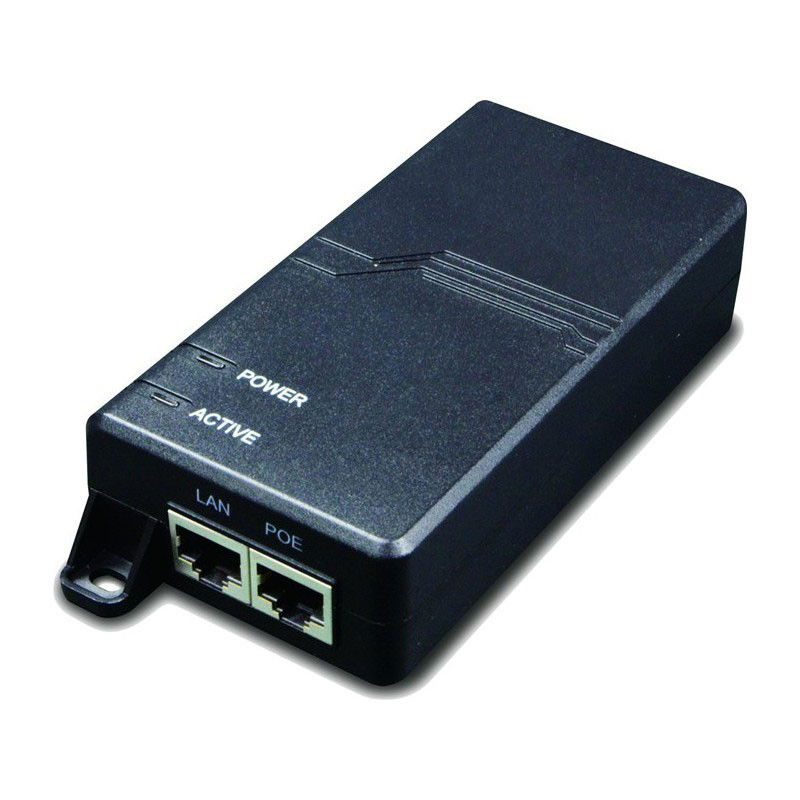

30 W PoE Gigabit Injector With Built-in Power Supply.
Supports both IEEE 802.3af and 802.3at.
Avoid installation of 230 V power outlets in the ceiling and similar places. >
With a ETH-POE56 + PoE injector, devices can be powered through the network cable up to 100 meters away.
Suitable for Access Points, digital cameras and other PoE devices.
ETH-POE56 + supports both IEEE 802.3af and 802.3at. Therefore, both older PoE devices can only require 15 W and higher, requiring up to 30 W of use with this injector.
24 ports PoE++ strømforsyning med fuld effekt 95 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100/1000 netværk
LAN without PoE voltage gives LAN with PoE
4 port PoE power supply 30 Watt per port
Connects between non-PoE switch and e.g. IP cameras with PoE
For 10/100/1000Mbit networks
Power supply included
Can be powered with 52-56VDC / 122Watt
Pin 4/5 +, 7/8 - (Mid-span)
Dimensions: 97 x 70 x 26 mm
Temp: -10 - +70°C
Waterproof Outdoor PoE+ Injector 30Watt
1 x RJ45 Data
1 x RJ45 Data and PoE+
1 x 2-pin DC Phoenix connectors
IK10 Vandal safe
Supply voltage: 24 - 56VDC
POE Standard: IEEE 802.3 at / af
End-Span
Pin: (+ 1.2) (- 3.6)
Operating temperature: -40 - +75°C
wall mounting
Size: 170 x 73 x 44 mm
Weight: 340g
Switches without PoE can with this Injector "upgraded" to PoE switch
24 ports PoE full power supply
Per port DC 52V 30.8/15.4 watts
LAN without PoE in, LAN with PoE out
10 / 100 / 1000Mbit network
Max PoE 440 Watts
