1 port serial port server via Single Mode fiber, RS232 / RS422 / RS485, up to 30km. Korenix JETPORT 5601F-S
External COM port via Ethernet and Internet - for fiber cable network switch
Device server with single mode fiber and RS232 / 422/485 port

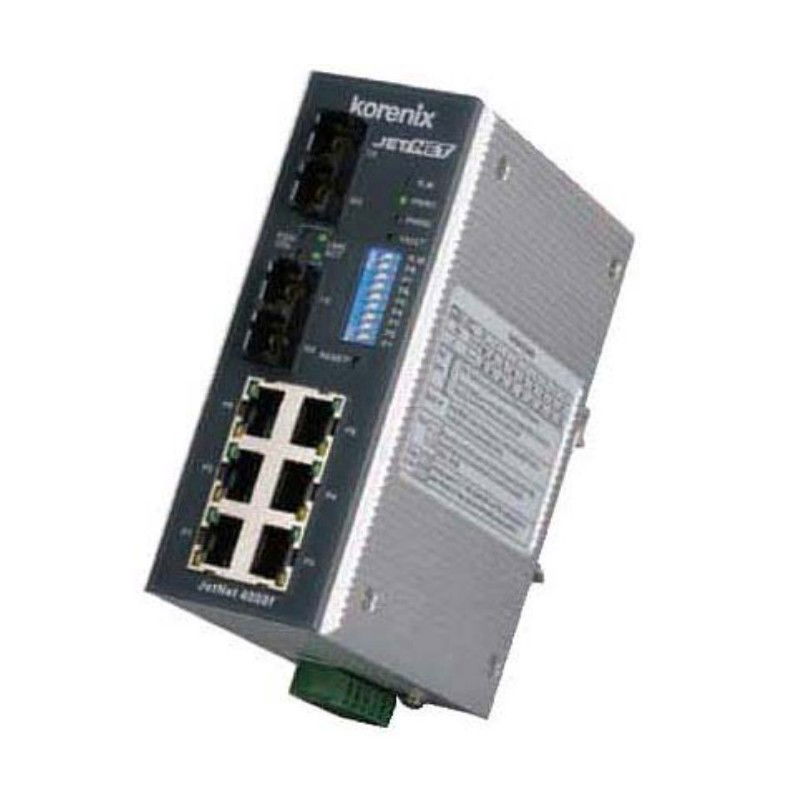

JETNET 4008F-S 8-ports switch
External COM port via Ethernet and Internet - for fiber cable network switch
Device server with single mode fiber and RS232 / 422/485 port
Network module with digital I / O Korenix JETI / O 6550
Channels: 14/8
Digital inputs: 14 pcs., Logic 0: 0 - 4 V, Logic 1: 5 - 30V
Digital outputs: & nbsp; 8 pcs. Open collector, 5 - 40 V 250mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface for the power supply
10/100 Mbit m / RJ45 their connector
Operating temperature: - 25 ° C - 70 ° C
Supports Modbus / TCP, OPC server, SNMP. Software included for configuration
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 1.92 W
REMAINDER SALE
MiniGBIC / SFP optical transceiver
LC
1310 nm
Up to 50 km single mode
Ethernet module with 8 x analog inputs
Channels: 8
Resolution: 16 bit
Analog inputs: ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs in relation to the power supply
Magnetic 1500 V from network interface to the power supply
10/100 Mbit m / RJ45 female connector
Operating temperature: - 25 ° C - 70 ° C
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 3.2 W
