24-28VDC 5A (120Watt) power supply 180 - 550VAC input, DIN rail
180 - 550 VAC input for 24-28VDC fine adjustment
120 W voltage supply
DIN rail mounting
Adjustable output 24 to 28VDC
Working temperature -30 - + 70 ° C

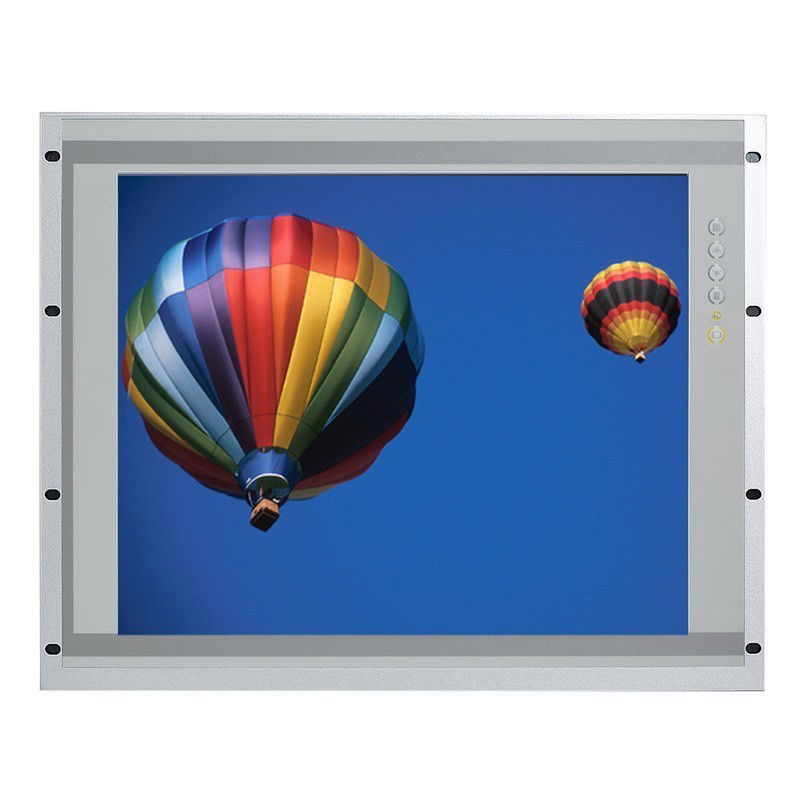

19" LCD monitor
Resolution: 1280 x 1024
5:4 format
IP65 front
250 nits
USB resistive Touch
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
1 x Audio Input
for Panel mounting OPTION: wall/rack or desktop mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cutout dimensions: 407.1 x 334.6mm
24V DC screw type
Weight: 6kg
MON19-P-TU is in a metal cabinet and is intended for industrial use and for installation in panels.
We can provide models with RS232 touch for older solutions.
180 - 550 VAC input for 24-28VDC fine adjustment
120 W voltage supply
DIN rail mounting
Adjustable output 24 to 28VDC
Working temperature -30 - + 70 ° C
90 - 240VAC for 24VDC fine adjustment
Effect: 76.8 Watt
Ripple noise: 120mA pp
Load Regulation (±): 1%
Line Regulation (±): 0.5%
UL, CUL, TÜV, CE, CB
Short-circuit, over-voltage, temperature-protected
Working temperature -20 - + 70 ° C
AC / DC power supply for your rail mounting
AC Input: 85 - 264Vac
Effect: 60W
Output voltage: 24V / 2.5A
Screw terminal
Adjustable output voltage for 24 to 29V
Working temperature: -30 - + 70 ° C
Dimensions: 90 x 54.5 x 62.5 mm (H, D, B)
24 "TFT metal monitor with capacitive touch, IP66, IP20
LED backlight
1280 x 1024
1000 nits, 700: 1, 4: 3
Display angle: 160 ° / 140 °
1 x DVI-I (29-pin DVI-D connectors female)
1 x VGA (15-pin D-sub connector female)
1 x RS-232 (DB9 male)
1 x Optional RS232 / 422/485
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
Desktop, Panel mounting
Weight: 6,100 g
429 x 387 x 75 mm
-40 to 70 ° C
CISPR 32, FCC Part 15B Class A
EN 55032/24
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND < Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx -, Rx +, Rx, GND
15 "TFT 4: 3 LCD Resistive Touch
50,000 Hrs LED Backlight Lite
Resolution Up to 1024 x 768
1x VGA, 1X DVI-D, 1x DisplayPort
350 nits Brightness
Designed with aluminum Die-cast Front Frame
IP65 Compatible front panel
Option: Projected Capacitive Touch
9 ~ 48VDC Via 3-pin Terminal Block
Panel, Vesa Mount
19 "LCD metal monitor, IP54 & nbsp; front,
1280 x 1024
300 nits, 2000: 1, 5: 4
LED backlight
Response time: 20ms
viewing angle : 178 ° / 178 °
1 x RS-232 (DB9 male)
1 x DVI-D (29-pin DVI-D female)
1 x VGA (15-pin D-sub female)
1 x RS232 / 422/485 (software selectable terminal block)
Supply: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55 ° C (5 to 131 ° F)
429 x 387 x 75 mm
Weight: 7,800 g
RoHS, CRoHS, WEEE
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx +, Tx-, Rx +, Rx-, GND
Optional: RS-485-2w: Data +, Data, GND
Optional: RS-485-4w: Tx +, Tx- , Rx +, Rx, GND & nbsp;
19" TFT LCD screen with 250 nits
Resolution: 1280 x 1024
250 cd/m2 (typical) / 800 : 1
LED backlight
1 x VGA (15 pin female D-SUB)
1 x PC Sound (Stereo headphone Jack)
1 x DC power plug
VESA mounting
Weight: 7 KG
Operating temperature: - 20o C ~ 60o C
