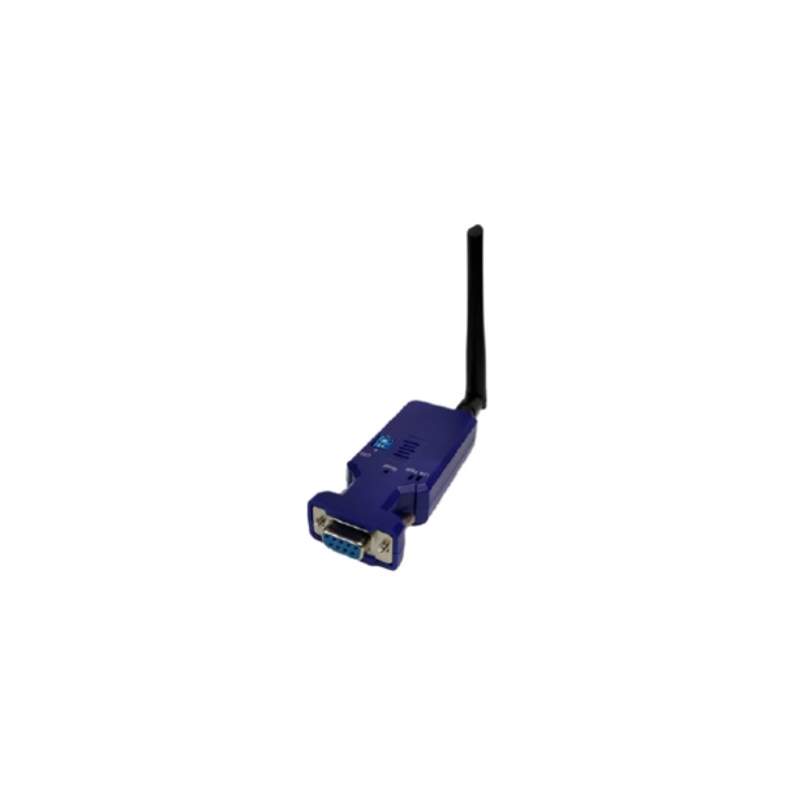

RS232 to WiFi Adapter - Connect RS232 Devices Wirelessly

DB9 female connector
1200 to 921600 baud
Supply 5 to 24 volts via USB or screw terminals
Built-in WiFi antenna
USB adapter cable included

CNV-RS232-WIFI+
102.95 EUR
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Wi-Fi connectivity:
- 802.11b, 802.11g, 802.11n (single stream) on channel 1-11@2.4GHz
- WEP, WPA/WPA2
- Transmit power：16 ± 2dBm@11b，14± 2dBm@11g，13 ±2dBm@11n
- MIN Receiver Sensitivity: -80 dBm
- Wi-Fi modes: Station, AP
- Operating Temperature: -40 to 85 Degree C
- Max. current: 300mA
- Auto detect security mode

TCP/IP features:
- DHCP client and server
- DNS, mDNS (hello)
- Two sockets working at the same time
- TCP client/server with keep-alive detection and auto reconnection
- UDP unicast/broadcast
- Support 4 clients in TCP server mode
- HTTP, FTP and SMTP client
- Sock4/5 proxy

UART features:
- CTS/RTS hardware flow control
- Serial port baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600,
- 115200, 230400, 460800, 921600, 1843200, 3686400 bps
- High Speed data transferred by DMA, the Buffer Size include: 0, 8, 16, 32,
- 64, 128, 256 bytes
- Parity: None, Even, Odd
- Stop bit: 0.5, 1, 1.5, 2 bits
