12VDC 3 Amp (36Watt) from the AC adapter 110 - 240VAC, Jack: 5.5 / 2.1mm
Switch mode type
110-240 VAC for & nbsp; 12VDC / 3A
DC connector: 5.5 / 2.1 mm
Module with smart temperature and moisture measurement and control
Password protected Web based configuration and control
1-Wire interface for 2 temperature sensors
2 x analog inputs from 0 to 60VDC - 10bit resolution, 100mV display
2 x digital inputs with "dry contact" and "logic level" mode
2 x relay output with NO / NC contacts
E-mail broadcast by alarm
SMTP with authentication (SSL / TLS is not supported)
SNMP v.1
SNMP traps generated alarm for HTTP and XML API commands
Remote firmware update.

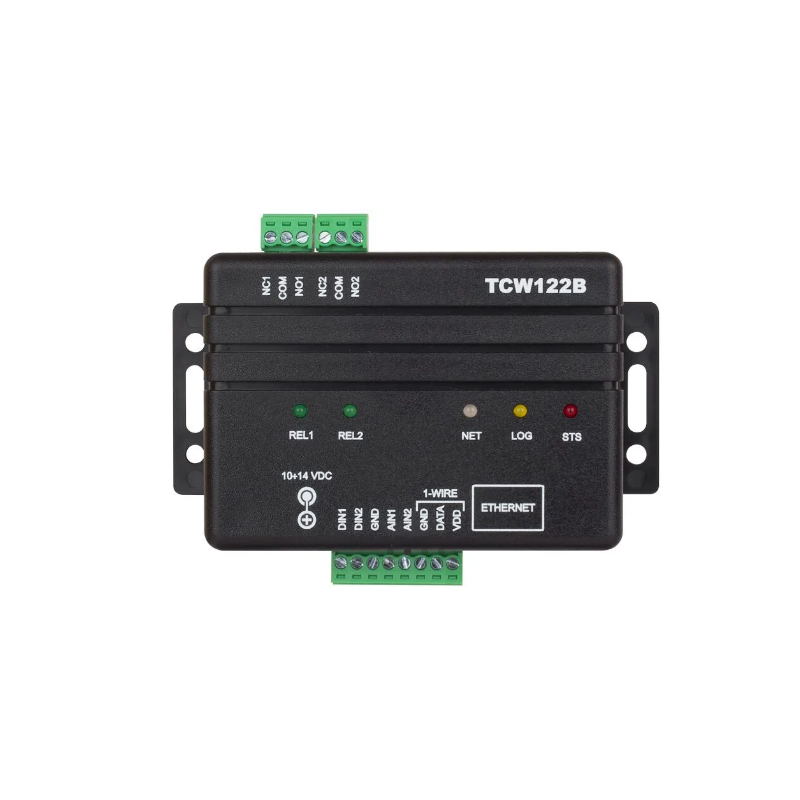

TCW122B-CM is a remote IO module for environmental monitoring and control, designed to work in Ethernet networks. It can be haneaged by WEB interface, SNMP programs, and user applications.
Remote IO module has two relays with normally open and normally closed contacts. Both relays can be activated locally - from the status of monitored parameters or remotely - by WEB interface, SNMP haneagers, and HTTP / XML API comhaneds.
TCW122B-CM support 1-Wire interface. Up to two temperature or humidity-temperature sensors can be connected. Along with ambient parameters, two analog voltages and status of two digital inputs can be monitored. For every parameter e-mail and / or SNMP trap for any alarm condition can be sent.
The controller can be used as a standalone device or as part of data acquisition (SCADA) systems.
Switch mode type
110-240 VAC for & nbsp; 12VDC / 3A
DC connector: 5.5 / 2.1 mm
1-wire kommunikation - 2 x RJ11 stik til daisy chain kobling
2 - 3 - 4 tråds Pt100 temperaturføler - 4-tråds anbefales.
Indbygget A/D konverter med kompensering
24 bit opløsning for temperatur måling
Kalibreret digital output
Eksellent langtids stabilitet
Hver føler har eget unik 64 bit serienummer
Temperature sensor with Dallas chip - up to 8 pieces on the same bus
1-wire communication to the measuring electronics
± 0.5 ° C accuracy from -10 ° C to + 85 ° C
12 bit resolution
Aluminum head provides low thermal resistance
IP65 close
Very low power consumption
Each unit has a unique 64 bit serial number
Temperature and humidity sensor
1-wire interface for Teracom controller
Temperature: +/-0.4 °C (-10 to +60 °C), max. +/-0.6°C
Resolution: 0.1°C
Humidity: +/-3.0% RH (20 - 80% RH), max. +/-5% relative humidity
Solution: 0.1% RH
Supply voltage: 4.5 - 26VDC
LED indicator for communication status
Long-term stability based on digital signal processing
Changeable bit rate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
Multi-Network Output Module with Galvanic I / O
10/100 Mbit Ethernet Connection
Password Protected WEB Server
2 Analog Outputs with Voltage and Power Generator
0 - 20mA, 4 - 20mA, 0 - 24mA
0 - 5V or 0 - 10V voltage output
4 digital (open drain) outputs with ON / OFF or PWM
2 relays with COM, NO and NC contacts
4 scheduled actions, 1 time or weekly
NTP, SNMP v2, SNMP trap for up to 5 recipients
MODBUS TCP / IP
HTTP upload with current status in XML or JSON remote server file
HTTP API commands in server and client mode
HTTP Post can be sent to 3 servers
DIN rail / wall mounting
Supply voltage: 10 - 32VDC / max 250mA
