Remote control and measurement, ICMP echo req/reply Watchdog, 2xDigital in, 2xAnalog in, 2xRelay out, 1-wire sensor input

Module with password protected Web based configuration and control

Instant ICMP watchdog - no echo will restart the module

1-Wire interface for 2 sensors

2 x relay outputs with NO/NC contacts

2 x analog input 0 to 60VDC - 10bit resolution, 100mV display

2 x digital input with "dry contact" or "logic level" mode

Stable IP watchdog monitoring - for equipment restart

SNMP v.1 support

SNMP trap conditional messages

VLAN and MAC address filtering

Remote FTP firmware update.

Supply voltage: 10 - 14VDC - purchase PSU

TCW122B-WD
1,634.92 NOK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

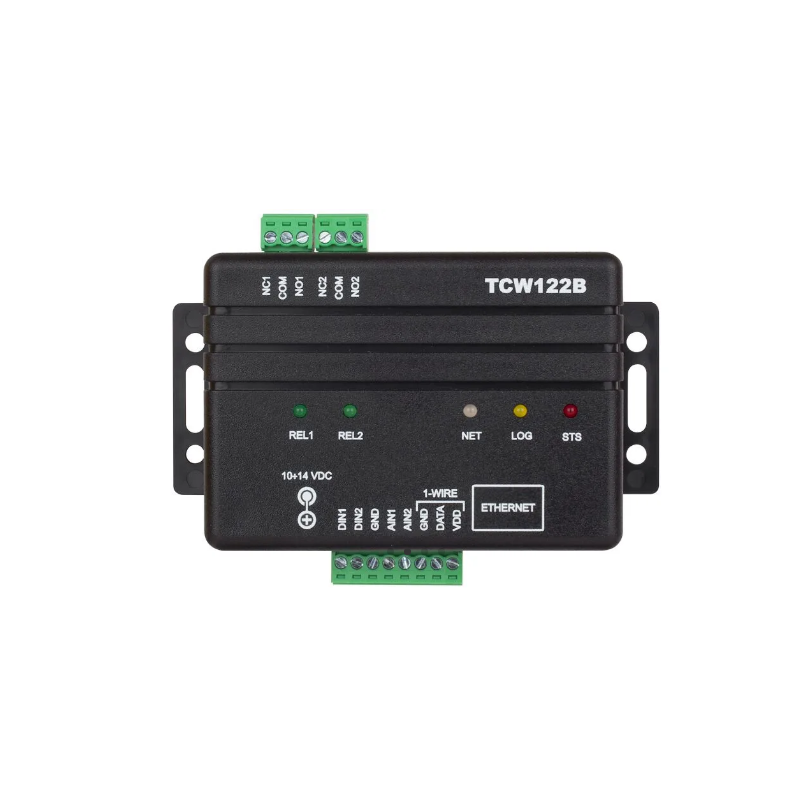

TCW122B-WD is a surveillance module for monitoring IP surveillance applications, specially designed for a fail-safe surveillance system.

The module controls the functionality of devices or networks by sending or receiving ICMP echo request or ICMP echo reply, respectively.

The current relay is activated if there is no ICMP echo (ping) within a certain time. This may reboot the monitored device or the network switch/router.

TCW122B-WD has two digital and two analog inputs. These are two relays with normally open and normally closed contacts.

For all monitored parameters - temperature, humidity, analog voltage and digital input status, SNMP traps can be sent under certain conditions.

The relays can be activated remotely (WEB and/or SNMP) or automatically from the presence/absence of ping.
