Data collector via Internet / LAN, 4 x digital input, 4 x analog input, 4 x relay output, 1-wire for temp / moisture, Modbus

Web based data collector module with built-in Web server
4 x digital input dry - External contact without voltage
4 x analog inputs with 0 to 60vdc - 10mv resolution
multiplier and offset for analog inputs and sensors
1-wire for a maximum of 8 sensors (16 parameters)
4 x Powerful relay outputs with No / NC Contacts
Modbus TCP / IP Support
SNMP V2 Support with Trap Alarm for 5 Recipients
4 PCS. Forms for real-time control of relay
Specific logical functions for relays
Secured email
XML / JSON and HTTP API commands for Client server
Dynamic DNS support for Dyndns, No-IP and DNS- O-Matic
NTP TimeSync
Supply voltage: 10 - 32VDC - Buy PSU
Dim: 145 x 90 x 40 mm

TCW241
2,084.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

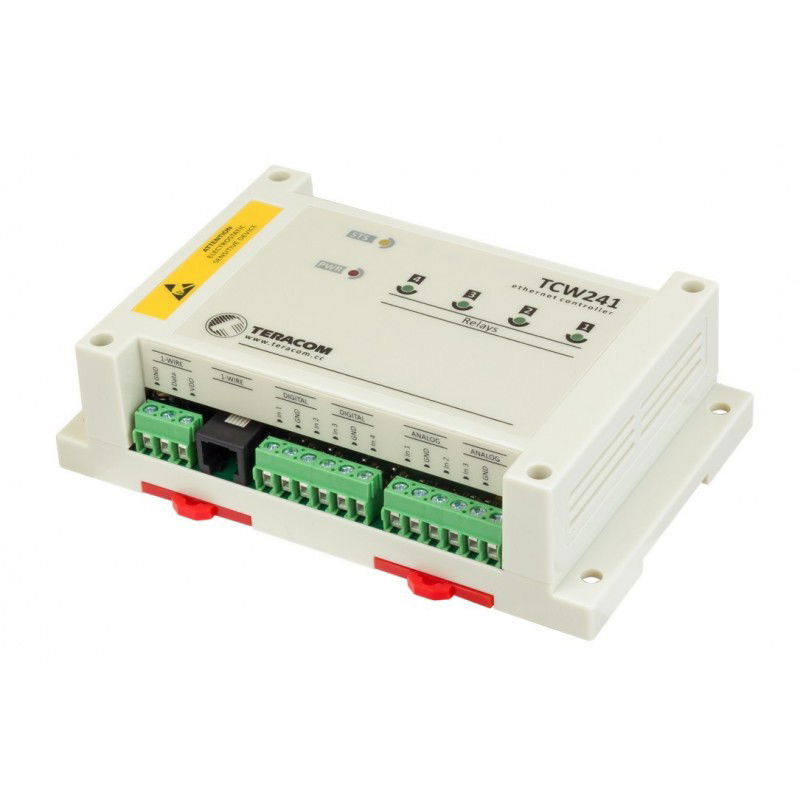

TcW241 is an Ethernet I / O module with Modbus TCP / IP.
It is intended for use in general Remove Ethernet I / O Monitoring and control.
TCW241 has 4 digital inputs, 4 analog inputs and 4 switch relays.
1-wire interface can be connected up to 8 Dallas sensors for temperature, moisture, carbon dioxide, AC or DC power, etc.

The relays to the Ethernet IO module can be activated either externally or locally.
remote control includes web interface or M2M protocols. The local activation is possible from a schedule, status of a single parameter or using custom-made functions. The function can contain up to 4 parameters.
TCW241 supports SNMP, Modbus TCP / IP and HTTP API.
TCW241 has RTC (real-time clock) with time server synchronization. It is used for advanced relay planning. The advanced schedule can be used for disposable or repetition functions (weekly) to turn on / off relays at pre-setting times.

TCW241 can start a connection (HTTP Post) for remote-controlled dedicated servers - XML ​​or JSON file. The files contain current values ​​for monitoring parameters. HTTP mail can be sent periodically or by pre-setting alarm conditions.
Support SMTP over TLS 1.0, TLS 1.1 and TLS 1.2.
