GSM-alarm - ONLT FOR 2G
Setup via USB with Windows setup program, SMS and HTTP API
2 digital "dry contact" inputs
2 analog inputs, 0 - 10VDC - with resistance can be changed to input
2 mA analog inputs, 0 -10VDC or 0-20mA, 10bit (WEB control)
4 relay outputs, NO and NC
1-wire input for up to 8 Teracom sensors
RS485 interface for max. 8 MODBUS RTU sensors
data logger with memory for 70,000 logs
Upload data to HTTP Server
SMS alert to max. 5 recipients
Email alert for max. 5 receivers (SMTP with TLS support)
relay outputs with calls
12 to 24VDC, 350mA @ 12VDC - acquisitions PSU

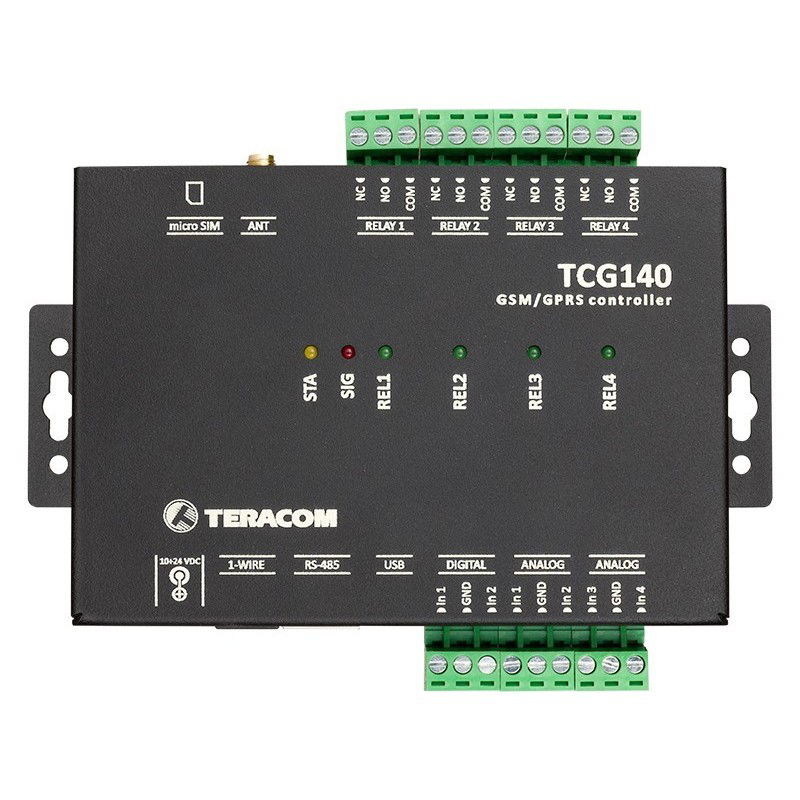

TCG140 is a GSM-GPRS remote I / O module for distributed monitoring and control over the mobile network. The module can be used as an independent device or as part of data monitoring systems (SCADA).
The GSM / GPRS remote's I / O module has two digital "dry contact" inputs, two analog inputs with 0-10VDC and two analog inputs with 0-10V or 0-20mA. The analog input mode can be done via the GUI.
The device supports 1-Wire and RS485 (MODBUS RTU) interfaces. Both interfaces can have up to 8 sensors divided between the two interfaces in a random relationship.
The device records all monitored parameters in internal FLASH memory. The records are made at the previous set time interval and / or in an alarm mode. The log file can be periodically uploaded to a dedicated server using HTTP Mail.
The device has four relays with NO and NC contacts. The relays can be enabled externally (SMS, Cold or HTTP API command) or locally. For local activation, one of the monitored parameters is assigned to the relay - the alarm state of the parameter activates the relay.
The TCG140 can start a connection (HTTP Post) for remote dedicated servers. The payment load for this is an XML file, with current values for monitored parameters. The HTTP content can be sent periodically or under alarm conditions. In response to the HTTP content, an HTTP API command can be returned for relay activation or modification of some settings.
In addition to the HTTP Post alert, the device can send SMS and / or email as an additional warning to a maximum of 5 SMS and email recipients.
Switch mode type
110-240 VAC for & nbsp; 12VDC / 3A
DC connector: 5.5 / 2.1 mm
Stand-alone Data logger via Ethernet
Memory for 70,000 measurements
Can be programmed to log every 3 seconds
Password protected Web based configuration and control
2 x digital input "dry contact"
2 x analog inputs 0 to 10VDC, 10-bit resolution, 10mV display
Multiply and offset for analog input
2 x relay with NO/NC contacts
1-Wire interface for 8 sensors
SNMP v.2 support
SNMP traps up to 5 alarm types
MODBUS TCP/IP support
E-mail to 5 recipients in case of conditional alarm
HTTP API commands
NTP and dynamic DNS support
Remote firmware update
Supply voltage: 10 - 32VDC - purchase PSU
Modbus RTU (RS485) relay module with 4 outputs
RS-485 interface supporting up to 63 nodes
Non-volatile memory that retains relay status
LED indicator for communication status
Voltage supply: 5 - 28VDC
Watchdog functionality for communication loss
Isolated relay contacts
Shrimp switch: 250VAC / 30VDC 3Amp
No inductive load on relay contact
Memory for saving settings
Built-in 120 ohm termination resistor
DIN rail mounting
Firmware update via the interface
Dimensions: 52 x 91 x 59 mm
Operating temperature: -20 - +60°C
Multi-band 4G LTE Cat.1 controller, logger and alarm
Setup via USB, SMS and HTTP API
USB setup - use USB cable with Mini B male
2 digital "dry contacts". High on contact
2 analog inputs, 0 - 10VDC or 4-20mA input (10bit)
4 relay outputs, COM, NO and NC
1-Wire input for up to 8 Teracom sensors
1 x RS485 for max. 8 MODBUS RTU sensors
Data logger with 70,000 logs
Upload data to HTTP/HTTPS Post in XML/JSON
SMS alarm and Email alarm to 5 recipients
Push mode – XML data is sent via HTTP Post to a remote server. Responses from server may contain relay setup.
10 to 28VDC, 370mA @ 12VDC - additional PSU
Dimensions: 158 x 119 x 34 mm
Weight: 470g
Temperature: -20 - +55°C
Temperature and humidity sensor
1-wire interface for Teracom controller
Temperature: +/-0.4 °C (-10 to +60 °C), max. +/-0.6°C
Resolution: 0.1°C
Humidity: +/-3.0% RH (20 - 80% RH), max. +/-5% relative humidity
Solution: 0.1% RH
Supply voltage: 4.5 - 26VDC
LED indicator for communication status
Long-term stability based on digital signal processing
Changeable bit rate and other communication parameters
Firmware update via the interface
Size: 81 x 81 x 30 mm
Weight: 66g
