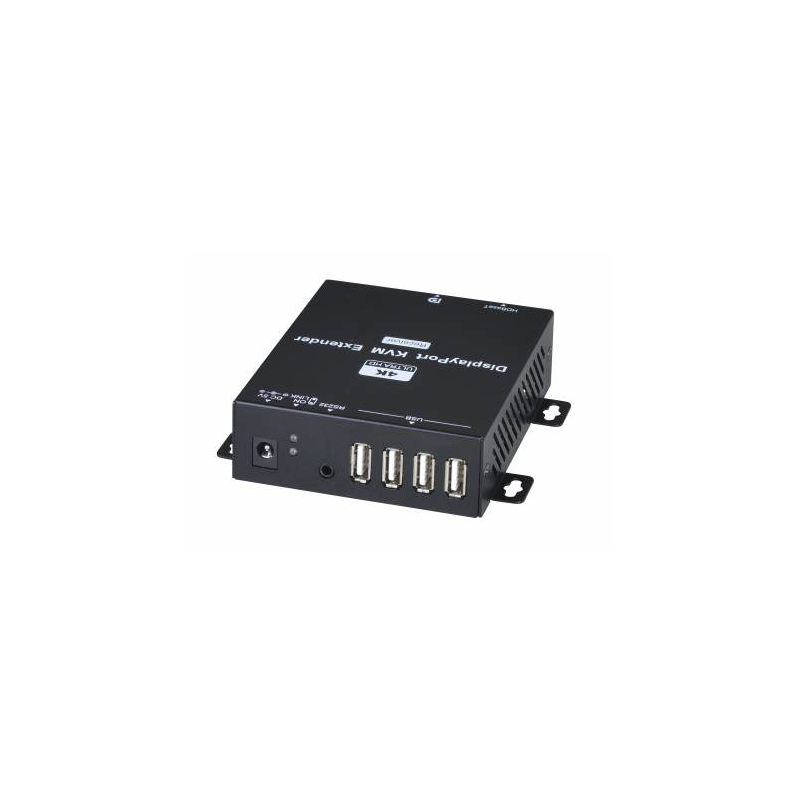

4K@60Hz - KVM DP Extender up to 100m over Cat. 6a cable. DisplayPort 4 x USB2.0 - for touch. Sender/receiver. 12VDC

DisplayPort KVM extender, 4K@60Hz and HD
100 - 150 meters with cat. 6a patch cable (need good quality cable!)
Up to 100 meters with 4K@50Hz
4 x USB 2.0 ports on the remote module
1 x USB B on local module
Transparent USB for K/M, USB drive, HDD etc.
2-way audio transmission - 3.5 mm Jack
DP1.2, HDCP1.3, USB2.0 compatible and Blu-Ray
Point-to-point cable connection
HDBaseT 2.0: Good EMI immunity
Supply voltage: 12VDC / 1.5A PSUs included
Consumption: 10W
Dimensions: 125 x 123 x 32 mm
Operating temperature: 0 - + 45°C

BOOST-DP100-U-4K60
6,584.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

BOOST-DP100-U-4K DisplayPort CAT KVM Extender is based on HDBaseT technology that uses only a single CAT5e/6/6a/7 cable to set up USB 2.0, RS232 and a DP display up to 100 meters with up to 4K UHD. This is an ideal solution for transmitting high-resolution signals with additional RS232 control signals and USB to a remote projector or screen.
In addition, the presenter can operate via USB. It also supports smart boards and touch screens.
