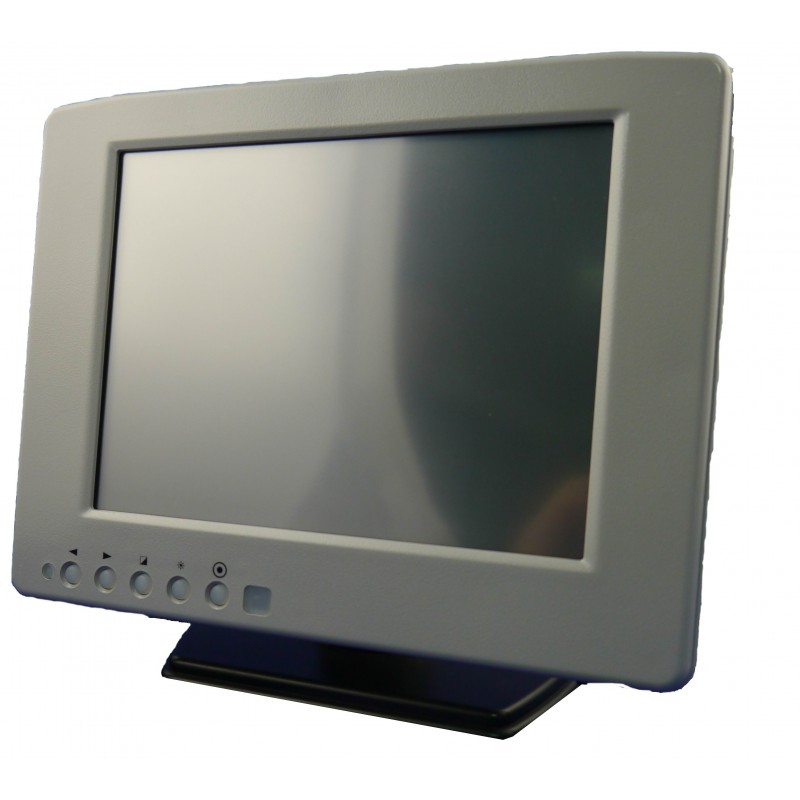

8 "IP67 tight TFT monitor, touch, 600nits, VGA & BNC, 16: 9

8” TFT monitor
IP67 all round
640 x  480 / 1920 x 1200 (VGA)
VGA, 3 x composite (Video)
Touch: resistiv via USB
Lysstyrke 600 nits (læsbar i sollys)
177 x 226 x 31 mm (H X W X D)
9-32 VDC. 12 VDC 1,5A PSU adapter inkl.

MON8-TFT-T-IP67S
2,900.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Waterproof-IP67 except I/O
High Brightness 600 nits
High Contrast 500: 1
LED Backlight With Low Power Consumption
4:3 Aspect Ratio
Resolution Supports from 640x480 ~ 1920x1080 pixels for VGA mode
NTSC / PAL / SECAM Auto Switching
Three Video Inputs
One VGA Input
Auto Reverse Function For Video 3
Touch Screen Function - USB Interface
Auto Power On / Off Function
Auto Dimmer Function
Multi-Language OSD Design (English, German, French, Spanish, Italian)
DC Input DC9-32V
VESA Mountable 75 x 75

Indgang
VGA og 3 x Composite (Video)
IP-Tæthed
IP67
Kontrast
500 : 1
Lysstyrke
600 nits
Montering
VESA75 eller medfølgende stander
Opløsning
640 x 480 ~ 1920 x 1200 (VGA)
Strømforsyning
9-32 VDC. 12 VDC 1,5A adapter medfølger
Tilbehør
Cigartænder-adapter, fjernbetjening og styluspen
Touch
Resistiv via USB
