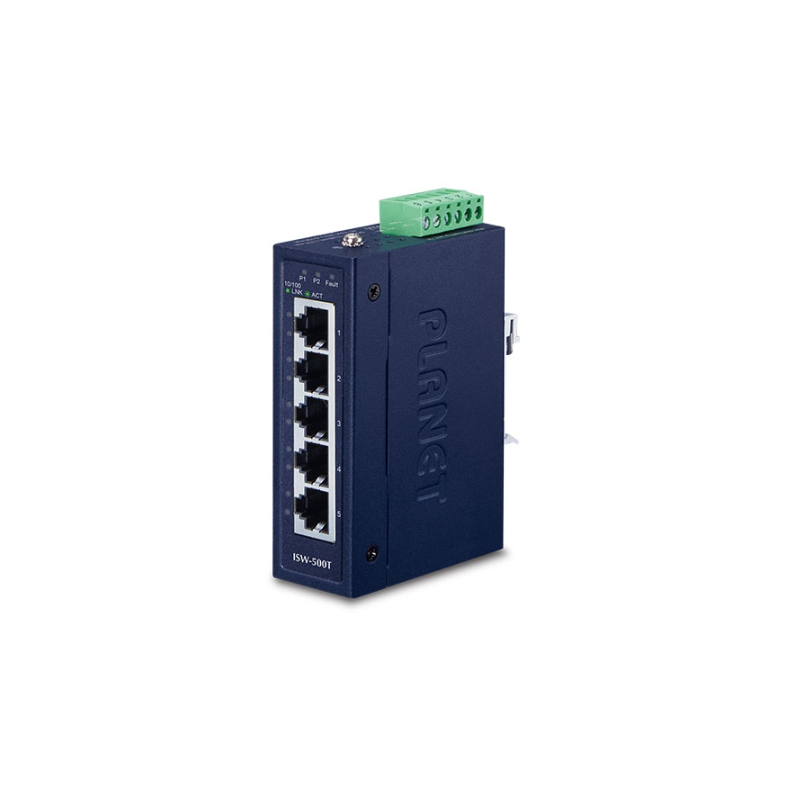

Compact 5 port Ethernet switch for 100Mbps
Not Managed
Very economical: max. 2 Watt
Supply voltage: 12 - 48VDC
Can also be powered with 24VDC
With redundant voltage input
Dimensions: 104 x 70 x 30 mm
Weight: 255 grams
IP30, metal housing
DIN bracket
Compact size for more practicality and has a green footprint.
The ESW5-DU is an industrial 5-port 10/100TX Compact Ethernet switch, suitable for industrial use, has 5 x 10/100 Mbps auto-negotiation ports, IP30-rated rugged but compact housing and an extensive redundant power system (12 ~48V DC or 24V AC). The ESW5-DU is capable of operating in any harsh environment with operating temperatures ranging from -40 to 75 degrees °C.
As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually on demand, the ESW5-DU is specially designed to make the installation of an industrial network easy as it comes with a Plug and Play feature. Moreover, it is stable and reliable when it comes to secure data transfer.
Unmanaged 5 port 10/100/1000Mbit
Redundant power input
9 - 48VDC
24 VAC
5-Port 10/100/1000BASE-T Gigabit Ethernet Switch
Plug-and-play operation without software installation.
IEEE 802.1p and DSCP-based QoS for prioritizing critical applications.
10 Gbps bandwidth and jumbo frame support up to 9K.
Complies with the IEEE 802.3az Energy Efficient Ethernet standard and has a silent, fanless design.
Metal housing with MTBF of 52 years.
Dimensions: 94 x 100 x 27 mm
Power supply: 12V DC, 0.5A (6W)
Industrial 4 Port Gigabit Ethernet PoE Switch
4 x Copper Ports - 10/100 / 1000Mbit RJ45
Managed Switch
IP30 Cabinet
DIN Rail and Wall Mounting
Supply: 45-57VDC
Operating Temp. -20- 70 ° C
Unmanaged 5 ports industriswitch
4 x RJ45 10/100Mbit
1 x SC fiber 100Mbit Single Mode
IP50
