Industrial PC, i7 processor, 3 x DVI, 1 HDMI, 4 display ports, 2 x GigE LAN

Industrial PC with 7 available display ports.
Configurable power management.
i7 processor Quad Core intel.
3 x sim card socket for use with WiFi / 3G / 4G / LTE / GPRS / UMTS. 7 x USB 3.0.
2 x USB 2.0 (internal).



IPC-I7-4EXP
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

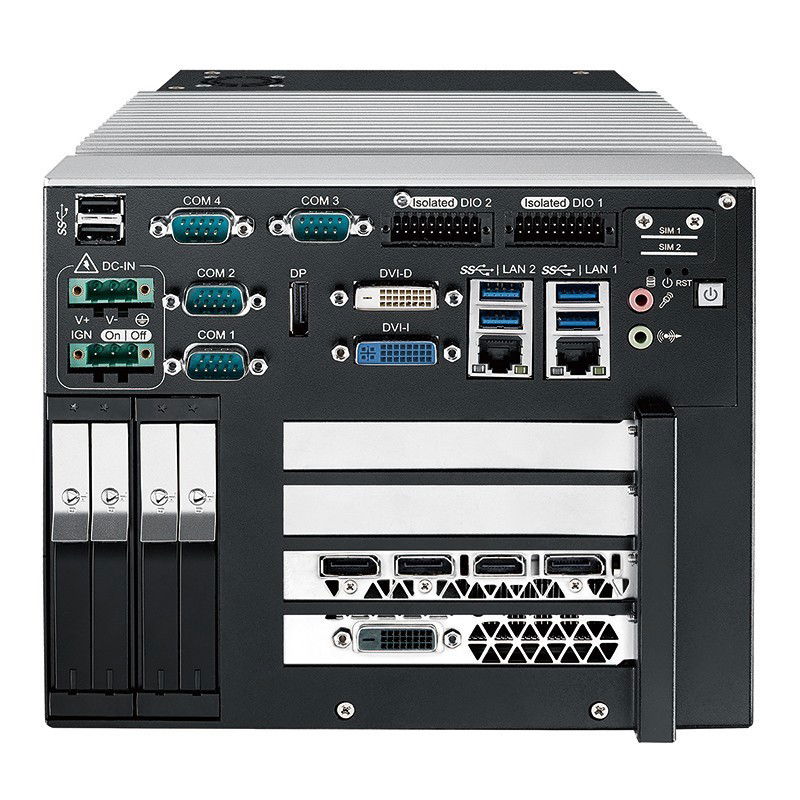

IPC-I7-4EXP is an industrial PC with these specifications.
NVIDIA GeForce GTX1080, 2GigE LAN, 1 PCIe x 4, 1 PCIe x 1
4 COM
7 USB 3.0
3 SIM
Isolated DIO
It can be modified with different options based on IPC-I7-4EXP with w / 65W CPU, or with Front-access SSD Tray with / without w / 65W CPU.

IPC-I7-4EXPmed 1 PCI, with / without w / 65W CPU. Or with 1 PCI, Front-access SSD Tray with / without w / 65W CPU

IPC-I7-4EXP with 2 PCI without PCIe, with / without w / 65W CPU. or with 2 PCI without PCIe with Front-access SSD tray with / without w / 65W CPU.

Dimensioner
172mm x 330mm x 210mm
Ethernet
LAN 1 Intel I219LM GigE LAN supports iAMT 11.0, LAN 2 Intel I210 GigE LAN
Grafik
Intel HD Graphics 630/530 NVIDIA GeForce GTX1080
OS SUPPORT
Windows 10, Windows 8.1, Windows 7, Linux
Porte
4 COM RS-232/422/485 (ESD 8KV)
SIM kort
3 SIM-kort socket (2 ekstern, 1 intern)
Skærm
3 x DVI, 4 x displayport, 1 x HDMI
Strømforsyning
10V til 36V, DC-in, 3-pin Terminal block : V+, V-, Fram ground
USB
7 x USB 3.0 (6 ekstern, 1 intern), 2 x USB 2.0 (intern)
