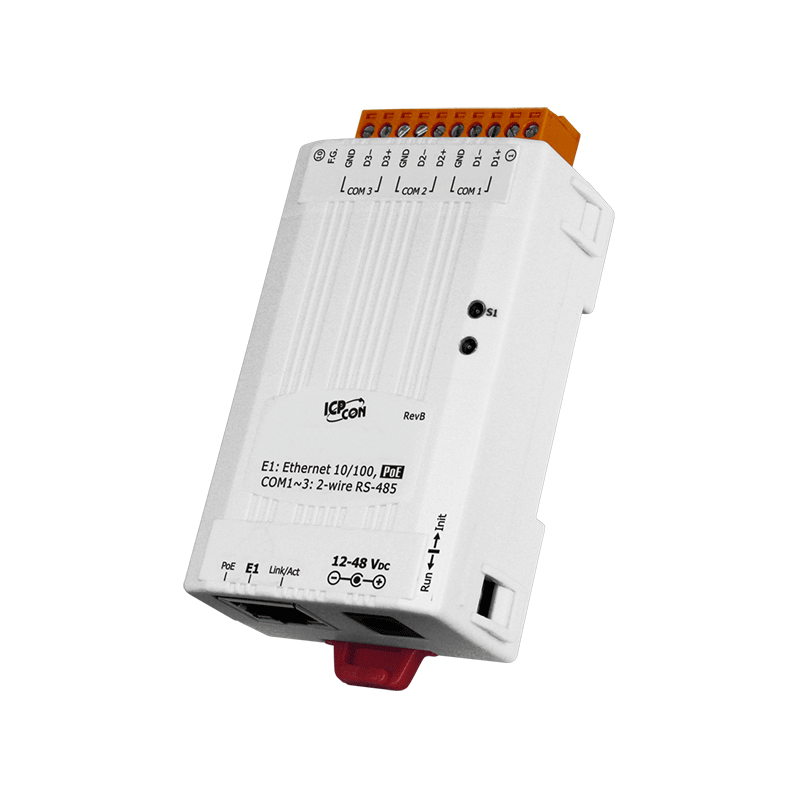

Serial Port Sharer/Converter, Modbus RTU/ASCII, Two Master units share a Slave unit. Bit rate conversion

Supports Baud Rate conversion
Supports the Modbus RTU/ASCII protocol
Supports 2 Master devices sharing 1 slave port
RAW data mode for most request-response protocols
Built-in web server for easy configuration (HTTP)
Redundant Power Input: POE (IEEE 802.3AF, Class 1) and DC Jack
Allows automatic RS-485 Direction Control
Tiny Form-Factor and low power consumption
Read cache ensures faster responses

M485-2M-1S
1,264.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

M485-2M-1S-modulet er en seriel port share / konverter, der indeholder en række funktioner, herunder "Baud Rate Conversion", "Modbus RTU / ASCII konvertering", "To Masters deler en slave" og "Read- Cache Function ".

Den indbyggede webserver giver nem konfigurationsgrænseflade, og der kræves ingen konsolkommandoer.

Baud Rate Conversion: Denne funktion gør det muligt for en enkelt masterenhed at kommunikere med slaveenheder Brug af forskellige baudpriser og dataformater.

MODBUS RTU / ASCII konvertering: Denne funktion gør det muligt at kommunikere en enkelt Modbus RTU / ASCII-master-enhed til at kommunikere med MODBUS RTU / ASCII slave-enheder ved hjælp af forskellige protokoller, baudpriser og dataformater.

To mestere Del en slave (kun til M485-2M-1S-serie): Denne funktion gør det muligt for to masterenheder, der er tilsluttet forskellige serielle porte til at dele slaveenheder.

Læs-cache-funktion: Indbygget cache-funktion reducerer indlæsningen af ​​seriel kommunikation på slaveporten ved at fjerne duplikerede forespørgsler når de to masterenheder anmoder om de samme oplysninger.

Dimensioner
52 mm x 95 mm x 27 mm (W x H x D)
Driftstemperatur
-25 ~ +75 °C
Installation
DIN-Rail Mounting
Maks. hastighed
115200 bps Max.
Netværk
10/100 Base-TX, 8-pin RJ-45 x 1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator) PoE (IEEE 802.3af, Class 1)
Paritet
None, Odd, Even, Mark, Space
Porte
3 x RS-485
Strømforbrug
0.07 A @ 24 VDC
