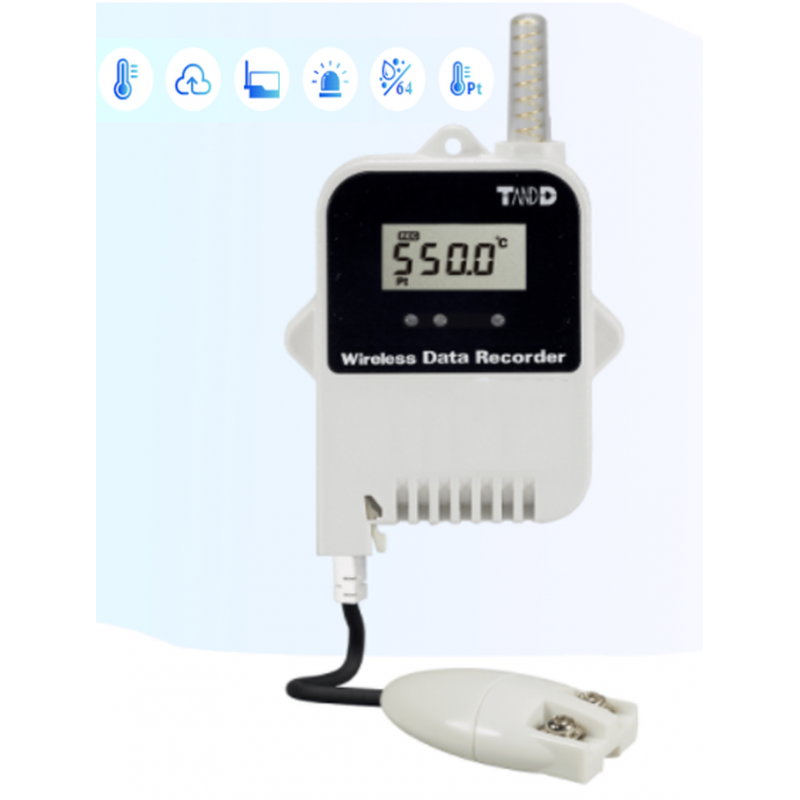

Wireless Temperature Logger with memory
Bluetooth T&D APP
For Pt100 and Pt1000 3-wire
Temperature: -199 - + 600°C, +/-0.3°C + 0.3%
Sends measurement data to Data Collector (Base Station) on 870MHz
Distance between Datalogger and Data Collector up to 150 meters
Battery operation up to 10 months with one upload per day
Data loggers are not on-line
16,000 measurements in memory with date and time stamp
Removable external terminal block. Close with O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1
The LOG-WL505PT series allows you to mix and match a variety of wireless radio communication loggers with different base units or data collectors to meet your needs. Logged data can be automatically sent via network or mobile communication to be stored in cloud storage or to a specific location. Designed for use with Pt sensors, the LOG-WL505PT measures in the wide temperature range from -199℃ to 600℃ with superior accuracy.
LOG-WL505PT loggers have a wireless radio communication range with compatible base units of up to 150m (492ft).
Data can be transferred from a logger to a base unit and then automatically uploaded to cloud storage or stored in a specific location. Data can also be checked on your PC screen or on site with one of our compatible data collectors.
As the LOG-WL505PT is able to measure a wide range of temperatures with high accuracy, it is perfect for situations where you want to control different measuring points at once, e.g. When recording temperature in research using deep freezers, high temperature tests, and low temperature tests.
3 thread PT 100 sensor
metal house 4 x 80mm
2 meter cable
accuracy: +/- 1 ° C
Temperature range: - 20 - +130°C
Battery for log-wlxxx series
in normal battery change Log-data not
LCD Display
Active kWh (positive and negative), quadrant reactive
Undervoltage, undercurrent, overcurrent, underload
RS485 MODBUS RTU
4G for data (SIM card not included)
Cloud price is not included
Operating temperature -20℃~55℃
IEC 62053-22:2003，IEC 62053-21:200
Wireless Temperature and Humidity Logger with memory
Bluetooth to T&D Thermo APP
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
2 x 8,000 measurements in memory with the date and time stamp
Accuracy of measurement: max. + / - 0.3 ° C, +/- 5% RH
Removable external sensor. IP64 with O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data Logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Battery type: LS14250 x 1
CO2 - CO - temperature - humidity
Industrial / outdoor robust environment-measuring station
LCD color display
CO2 0-9999 ppm - electrochemical sensor
temperature of -20 - + 50 ° C, humidity 0 to 100% RH
dewpoint measurement based on the temperature and moisture
Up to 450,000 logs with date and time stamps
Web-based configuration interface
APP: iOS APP and Android APP, powerful software
DCON, Modbus RTU / TCP and MQTT protocols
RS-485 / Ethernet / PoE
Relay output for local alarm or building management
power supply: PoE and 12 - 48VDC ca. 3.5Watt
IP43 sealed enclosure (CO2 + temperature sensor)
Dimensions: 211 x 130 x 70 mm
DIN or wall mounting bracket
The 16-bit A / D converter in data logger failed
With cold-junction temperature compensation to 8 Megabyte memory to log data
USB and RS232, automatic baud rate up to 115.2kbit
Battery operation - 12 years battery
, if you acquire: Software for configuration export, plotting, analysis and reporting (not included)
Configurable alarm controls
measurement speed from 20 milliseconds (1 channel) to 12 hours
Robust aluminum housing
coated PCB for protection against moisture, corrosion
Dimensions: 88 x 65 x 24mm
Weight: 200 grams
