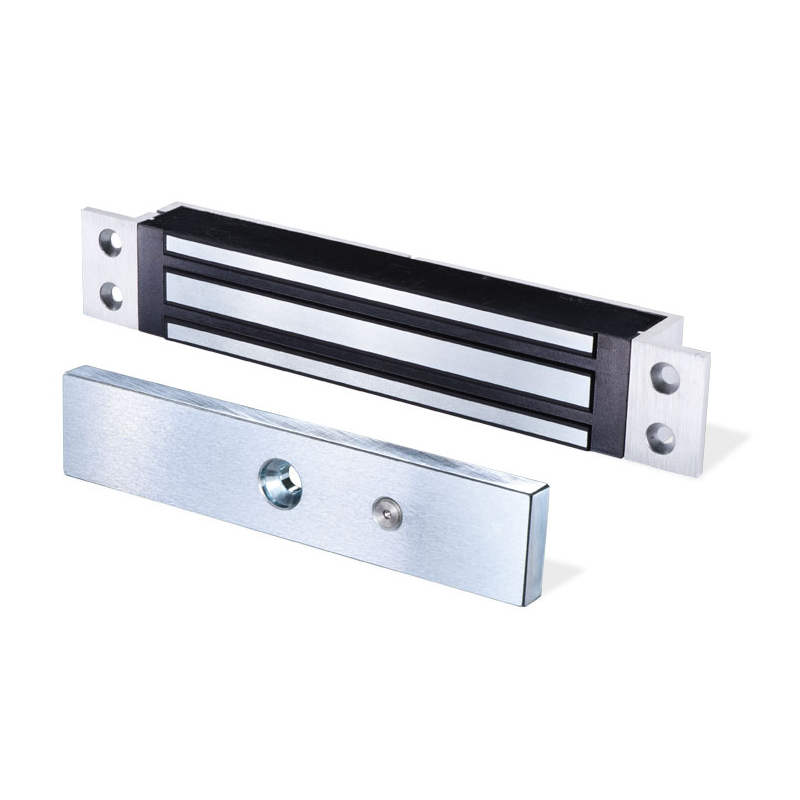

Electronic door magnet for 12 / 24VDC for inlay in door frame. Up to 272kg holding force. IP67 also for outdoor mounting

Stand-alone access control in IP68 sealed housing

ADGANG20-RFID is a stand-alone access control that can control an electronic door lock.
Identification: Via keyboard or RFID EM card/chip.
User capacity: Max. 2000 users.
Identification time: < 20 ms.
RFID Reader: EM type for 125 kHz.
Checking the door lock:
Relay output with make and break function 12VDC or 24VDC / 6Watt
Housing: IP68 sealed stainless metal housing

Technically demanding product - Support hours can be purchased additionally

Power supply 100 - 240VAC to 12 VDC / 5A, switch mode. 2.5mm / 5.5mm Jack
Power cord included.

 stand-alone adgangskontroller Mifare

Bluetooth
Up to 196 users
APP for Android - e-access E1196
Range up to 50 meters
Can be set to open by pressing in the APP
Can be set to open automatically when you are within range
Built-in buzzer 85dBA can be activated when the door is open.
When you choose to activate Bi-stable function, you can press down the E button on the screen for a few seconds to activate and keep the door unlocked indefinitely.
Does not save events (no log function)

AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C

Access is controlled by Smartphones via BT
Equipped with call button to request access
United pushbutton with light
Built in sounder
Up to 1000 users
Different user rights
3 functions: access with BT APP, access via query Exit
one administrator
BT: BLE4.2 (Low Energy)
BT range: up to 50 meters, depending on conditions
Compatibility: Android 5.0 and up, iOS9.0 and up
relay contact: NO / COM / NC (switching relay)
Supply voltage: 12 to 24VDC 1A
Operating temperature: -20 - + 70 ° C
Dimensions: 86 x 86 x 38 mm | material: plastic housing

Bluetooth BLE 4.2 (Low Energy)
Up to 200 user
With user rights
Up to 1000 event logs in memory
access with RFID tag (EM, 125kHz)
access by PIN code (4-8 digits)
with keypad backlighting
app for the iPhone and Android
Range up to 50 meters
Can be set to open at pressures in the APP or automatically once inside the selected range
With solid state relay - no wear
With vandal alarm
Supply voltage: 12 to 24VDC
Dimensions: 152 x 45 x 23 mm

Bluetooth BLE 4.2 (low energy)
Up to 200 users
With user rights
Up to 1000 event logs in memory
Access with RFID chip (EM, 125kHz)
With LED indicator
APP for iPhone and Android
APP is Easiprox
Range adjustable from 0 to 20 meters
Can be set to open by pressing in the APP or automatically when you are within range
With solid state relay - no wear and tear
Adjustable re-lock time 1 - 1800 seconds
3 lock mode: Re-lock, always open, always locked.
Vandal alarm
Supply voltage: 12 to 24VDC
Dimensions: 120 x 76 x 21 mm
