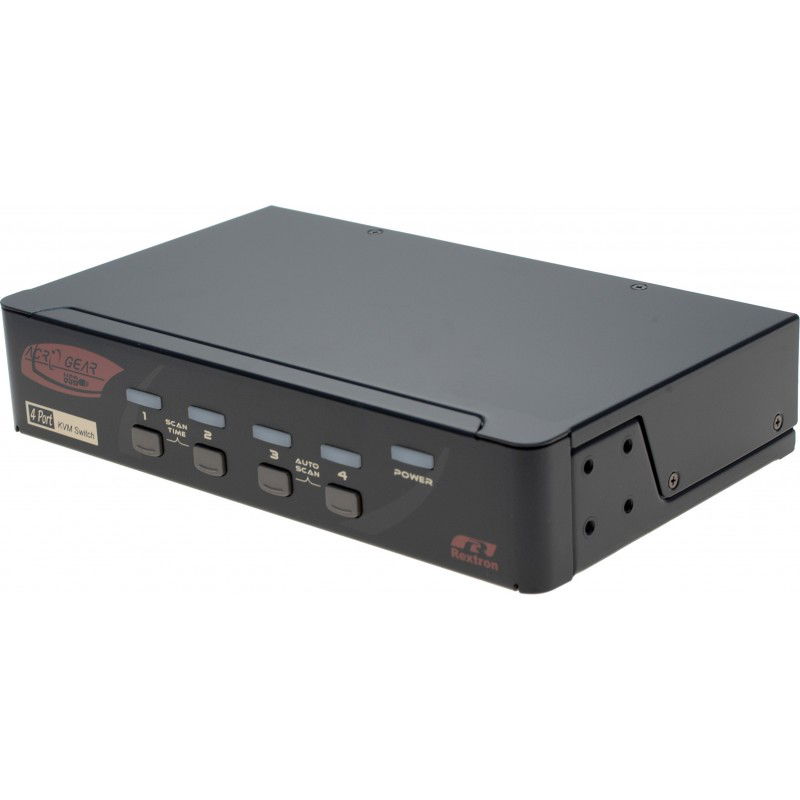

4-port KVM switch with DisplayPort, USB 2.0 and Audio. 2560 x 1600. Hotkey PC choice.

4-port KVM switch, DisplayPort, USB
2 x USB for mouse and keyboard
2 x USB to USB devices - transparent USB
Resolution up to 2560 x 1600 points
Transmits audio
Push-button Selection and HOTKEY choice of PC
Scan between PCs - choice of time
AC adapter included 12VDC / 1.5A
Can be used as DisplayPort switch - use PSU
Dimensions: 220 x 130 x 44 mm

KVM4-DP-U+LYD
230.10 GBP
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

4 Port PC switch to single DisplayPort monitor, USB keyboard and mouse, microphone and speakers ( KVM switch).
There are 2 USB ports to share USB devices between PCs . A USB hub can be connected if there is to be connected to more than 2 USB devices.

Afstand
Fra bruger til omskifter og fra omskifter til pc: Op til 5 meter
Dimensioner
44 x 220 x 130 mm (H x B x D)
Forsyning
230 VAC til 12 VDC 1,5 A. Medfølger.
Indgang
Mus og tastatur: 2 x USB A porte
Indikatorer og kontakter
Lysdiode indikerer om der er aktivitet på indgangen, anden lysdiode indikerer den aktive port
Kabel
Kabler medfølger ikke, se tilbehør
Kompatibilitet
Mus og tastatur: 4 x USB B stik. Skærm: 4 x DisplayPort. Lyd: 4 x 2 mini Jack stik.
Maks. opløsning
2560 x 1600 ved 60 Hz
