For harsh industrial and outdoor environments.
Voltage over Ethernet - PoE - no external voltage source
Extend a PoE voltage and data signal up to 100m
PoE output power: up to 22Watt
Over a single CAT 6 cable (STP cables are recommended).
Cascade: Maximum 4 ETH-BOOST-POE-1G-U units in extension
Extends the distance up to 500m
IP66

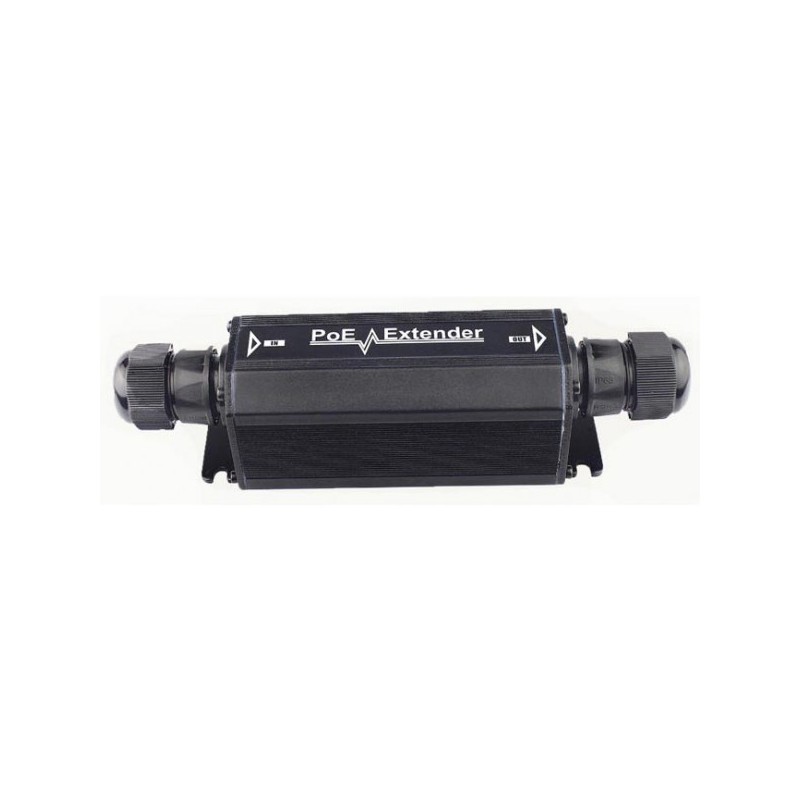

Waterproof PoE Extender.
Use the waterproof ETH-BOOST-POE+ Power over Ethernet Extender to extend a PoE signal up to 100m in harsh environments. Ideal for WiFi Access Points, IP phones, surveillance cameras and kiosks where a power connection is not available.
Plug and Play. No settings.
RJ45 EIA 568A and B
24 ports PoE strømforsyning med 15,4 Watt per port
LAN uden PoE ind, giver LAN med PoE ud
Til 10/100Mbit netværk
PoE+ Injector via Ethernet cable, 30Watt
Anit interference protected
OVERLOAD and monitor protected
Network: 10/100 / 1000Mbps
RJ45 Pin Assignment: 1/2 (-), 3/6 (+)
Power Supply: 100 - 240Vac
2 Ports Poe Injector provides 2 x 36Watt for PD equipment
10/100/1000 Mbit
pin 4/5 (+), pin 7/8 (-)
4 x RJ45 (2 with data and 2 with data + PoE for equipment)
supply voltage: 12 - 56VDC
Power Budget is 60 - 72 Watt
Dim: 105 x 70 x 30 watts
Weight: 280g
Operating temperature: -40 - + 75 ° C
DIN mounting
PoE++ power supply via Ethernet cable, up to 60 Watt
LAN without PoE in, gives LAN with PoE out
PoE++ 48-53VDC/60W
Mid-span and End-span give 60Watt
For 100/1000/2500/5000Mbit networks.
Power is supplied from 48 - 54VDC
Temperature range: -40 - +75°C
Dimensions: 135 x 88 x 32 mm
DIN mount
