Gender Changer DB9 female to DB25 male Adapter for RS232 serial
Converter / adapter, DB9 female plug to DB25 male plug
transfer mode RS422 - full duplex
max.transfer rate 115 kb/s
max. line length 1 200 m
transfered signals RxD, TxD
selectable terminator 120R
connector RS232 D - SUB 9 pin F
connector RS422 D - SUB 9 pin M
galvanic indication (LED) red PWR, yellow RxD, green TxD
power supply 12V + -10%
input supply max. 1W
dimension 63 x 17 x 34 mm

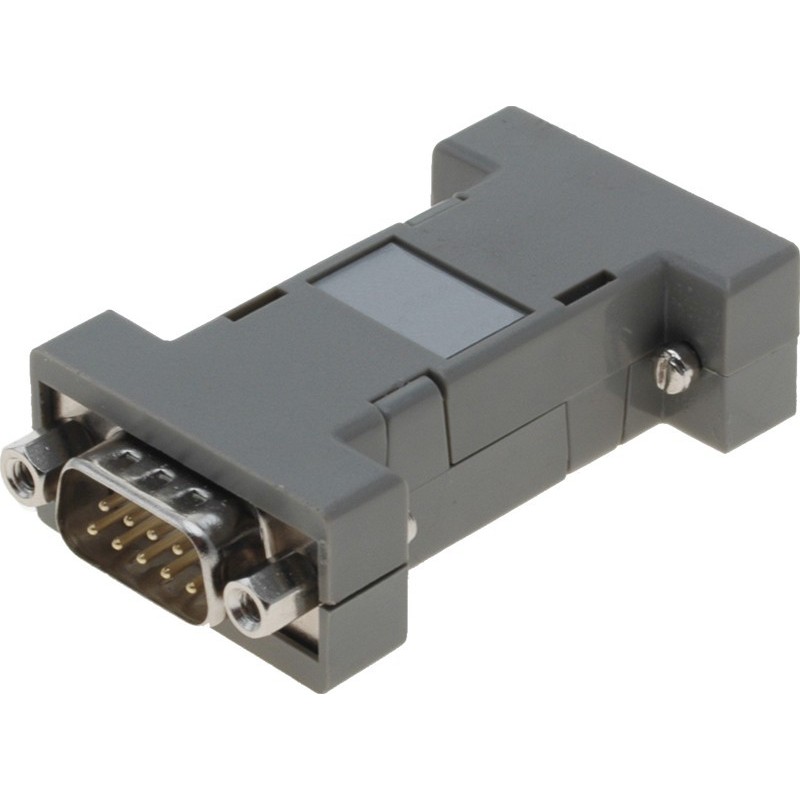

Type: RS232 for RS422 with galvanic isolation and DB9 connector, full duplex
Speed: Up to 460 kbit / s
Distance: RS422: Up to 1.2 km RS232: Up to 15 m
Isolation: 1 kV
Indicator: Tx, Rx and On Mode
Supply: 12 VDC External Power Supply included. Power consumption approx. 1 W
Plug: RS232: DB9 female RS422: DB9 male
Other: Isolates and transfers the following signals: Tx and Rx
Converter / adapter, DB9 female plug to DB25 male plug
Optiskt isolerad RS232-adapter, max. 115,2 kbps, automatisk flödeskontroll, DB9-kontakt
Optoisolerede RS232 til RS422/485 konverter
3000Vdc isolation
24Vdc, 1.2W
RS-232 (DB9)
RS485 (2-Wire) eller RS422 (4-Wire)
Speed (bps): 1.200, 2.400, 4.800, 9.600,
19.2 k, 38.4 k, 57.6 k, 115.2 k
RTS control and RS-422 (switchable)
With CNV232-485PW + you get an RS485 or RS422 port on the PC
Selecting RS422 or RS485 with DIL switches on the device
Super compact with DB9 female and screw terminals
Can be powered by external voltage from 9 - 12VDC / 500mA
Operating temperature: -40 - + 85 ° C
Optoisolated RS-232 for RS485 converter
3kVDC isolation on RS232 from DC input
ESD protection for RS232 / 485
Baud rate 300 bit / s to 115,200 bit / s
Supports power inputs of +10 V DC to +30 V DC
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting
