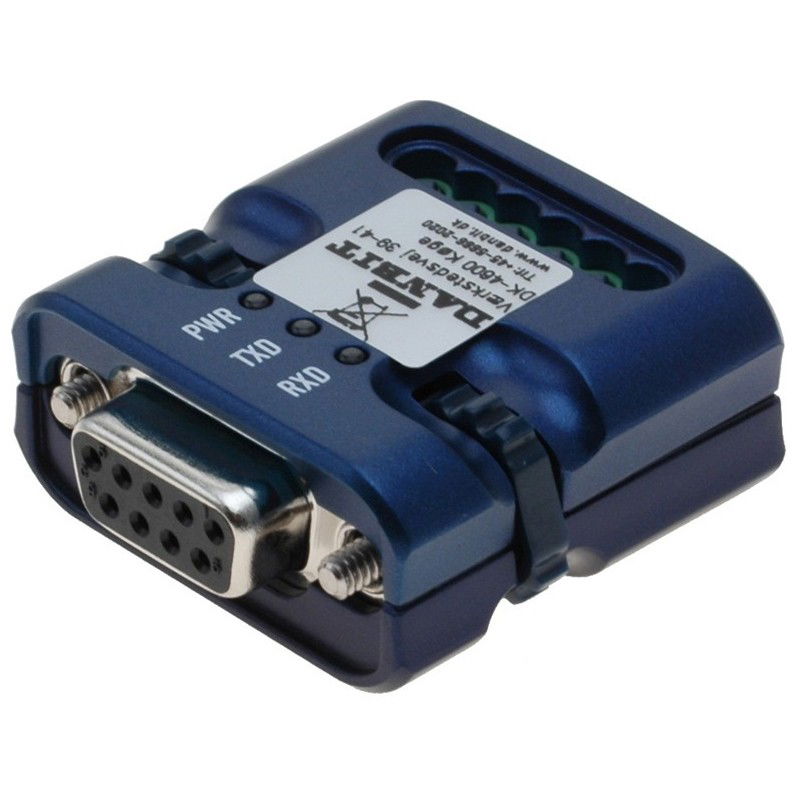

With CNV232-485PW + you get an RS485 or RS422 port on the PC
Selecting RS422 or RS485 with DIL switches on the device
Super compact with DB9 female and screw terminals
Can be powered by external voltage from 9 - 12VDC / 500mA
Operating temperature: -40 - + 85 ° C
Type: RS232 'RS422 / RS485 converter
Speed: Up to 921.6 kbit / s
Distance: Up to 1.2 km on RS422 / 485 s in it and up to 15 m in RS232 since
Supply: Supplied by RS232 port or 9 - 12VDC
Connectors: RS232: DB9F, RS485: Screw Terminal
switch to select RS422 or RS485 well as local echo on or off by RS485
signals: RS232 : TXD, RXD, RTS, DTR, GND
signals: RS422: TXD +, TxD-, RXD +, RXD-
signals: RS485: TRXD +, TRXD-
Converter / adapter, DB9 female plug to DB25 male plug
Industrial RS232 to 422/RS485 Serial Converter/ Repeater with 2 KV Isolation, MOXA TCC-100i
RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 KV isolation protection (TCC-100I/TCC-100I-T)
Wall and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
-20 to 60°C operating temperature
Optiskt isolerad RS232-adapter, max. 115,2 kbps, automatisk flödeskontroll, DB9-kontakt
transfer mode RS422 - full duplex
max.transfer rate 115 kb/s
max. line length 1 200 m
transfered signals RxD, TxD
selectable terminator 120R
connector RS232 D - SUB 9 pin F
connector RS422 D - SUB 9 pin M
galvanic indication (LED) red PWR, yellow RxD, green TxD
power supply 12V + -10%
input supply max. 1W
dimension 63 x 17 x 34 mm
RS485 for RS232 or RS422 for RS232
optoisulated RS232 for RS422 / 485 Converter
supply voltage is isolated against RS232 page
Supply voltage is isolated against RS485 / 422 page
Automatic Baud rate control
