Omformer fra RS232-RS422/485. Industriel RS232 til RS-422/485 konverter
RS232-RS422/485 konverter
Hastighed: 230.4 kBit/s
RTS/CTS support
Til DIN og vægmontage
Plug-in terminal block til RS422/485

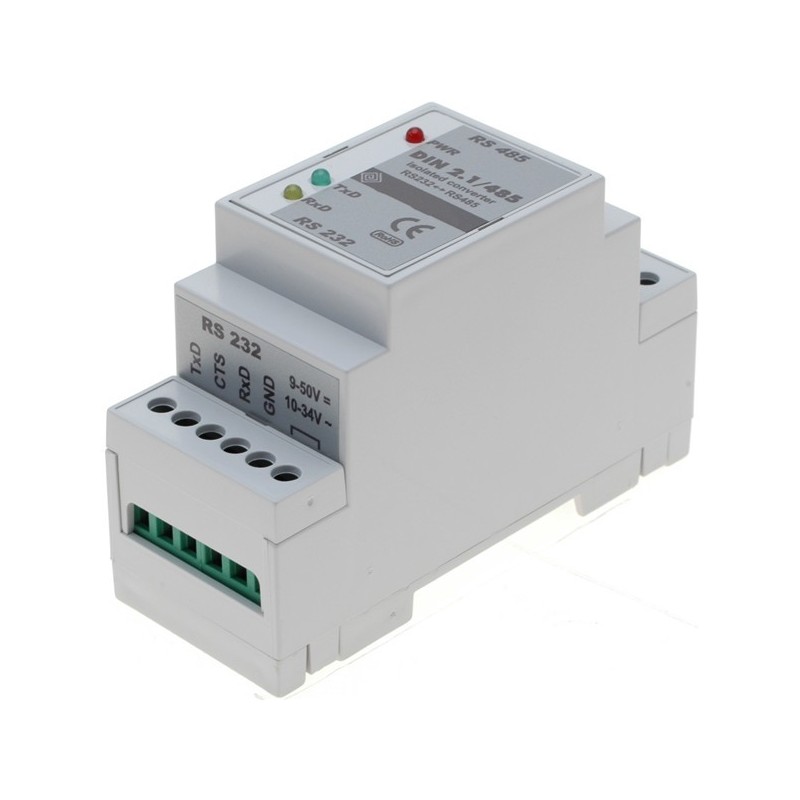

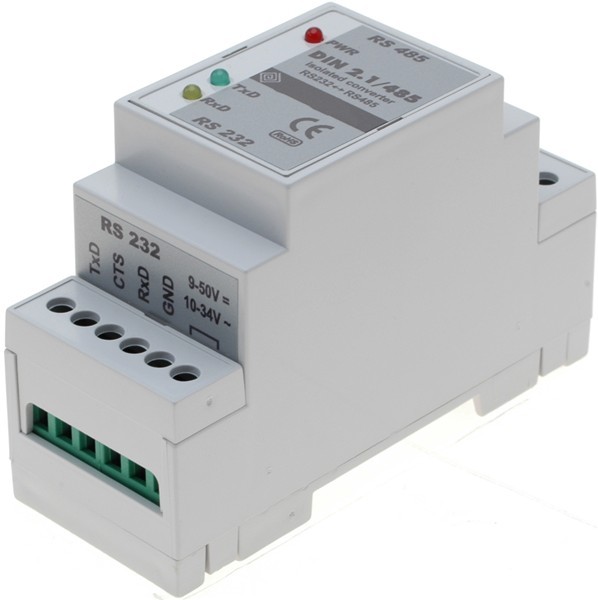

RS232 for RS485 converter
Opto-insulated
Galvanic isolation between DC input and RS232 port
Supply voltage: 9 - 50VDC, 10 - 34VAC
Automatic flow control
Up to 1.2km Built-in Termination Resistance - Can be Disconnected
Screw Terminals
Type: RS232 for RS485 converter
Speed: Up to 115.2 kbit / s
Distance: Up to 1.2 km on RS485 page
Supply: 9 - 50 VDC or 10 - 34 VAC via screw terminal. Power Supply Available as Accessories
Plugs: Screw Terminal
Protection: Optical Isolation: 1 kV on RS485 page relative to RS232 and power supply
Other: Flow control via RTS or automatic.
120 Ω built-in termination resistor that can be disconnected
RS232-RS422/485 konverter
Hastighed: 230.4 kBit/s
RTS/CTS support
Til DIN og vægmontage
Plug-in terminal block til RS422/485
RS232-RS422/RS485 konverter
Op til 115,2 kbit/s
Afstand: Op til 1,2km på RS422/485. op til 15 m på RS232
Forsyning: 9 VDC, 100mA, strømforsyning medfølger
Stik: RS232:DB25F,
RS485: Skrueterminal og RJ11
Optoisolerede RS232 til RS422/485 konverter
3000Vdc isolation
24Vdc, 1.2W
RS-232 (DB9)
RS485 (2-Wire) eller RS422 (4-Wire)
Speed (bps): 1.200, 2.400, 4.800, 9.600,
19.2 k, 38.4 k, 57.6 k, 115.2 k
RTS control and RS-422 (switchable)
RS485 for RS232 or RS422 for RS232
optoisulated RS232 for RS422 / 485 Converter
supply voltage is isolated against RS232 page
Supply voltage is isolated against RS485 / 422 page
Automatic Baud rate control
