4 Ports serial port server RS422 / 485 Serial Device served 1 x RJ45, 2 x SFP slot

Monitor, manage and manage industrial devices
1 x RJ45 Ethernet port
2 x SFP slot for fiber transceiver (SM or MM)
Industrial EMC protection, temperature operation wide, -40 ° C ~ 85 ° C
Fast-Ethernet 2 x 100/1000 SFP Slots with RSTP Redundancy
4 software Selected RS485 / RS422 Serial ports, up to 921Kbps
TCP Server / Client, UDP, Virtual com and tunneling modes supported
Embedded Security with PPTP, IPSec or OpenVPN Client / Server
Redundant 12 ~ 48 VDC Power Entries
Configuration via Web Browser / Serial Console / Telnet / Windows Utility
Robust Metal Cabinet with wall or DIN rail

ETH4SER-A-I
6,678.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

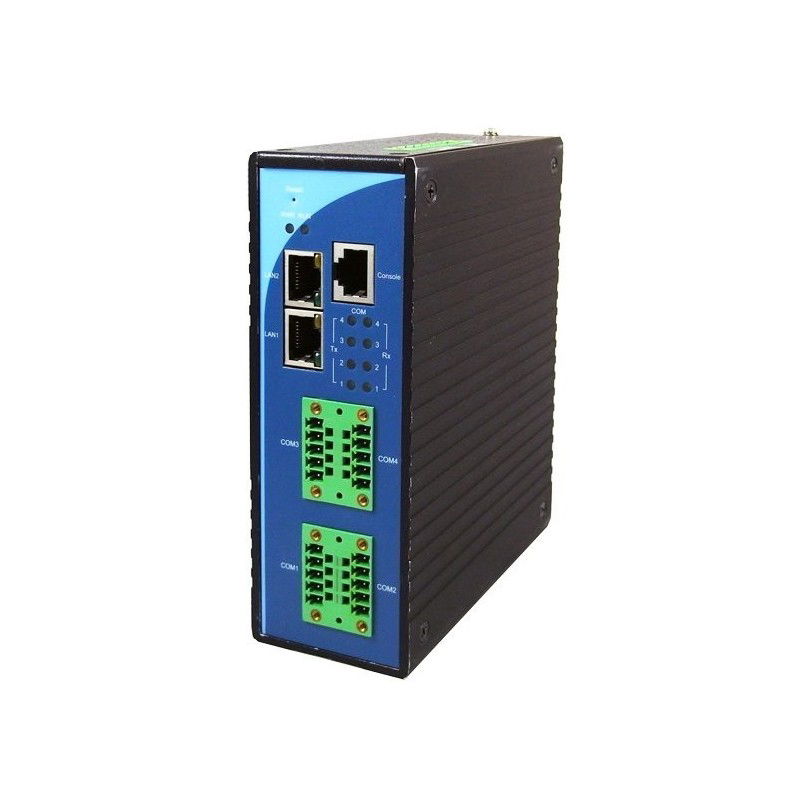

Newest generation 4-port serial port server with redundant network port from Atop. The redundant network port ensures the network connection in error and cable break with a shift time from port to port of 200 ms. Eth4ser-A-I is a serial port server for Ethernet network, for example. local area and / or internet. The dual network port with Auto Fallback continues to ensure operation of less than 200 ms if one of the network connections fails. The serial ports are set as RS422 or RS485 with speed up to 921.6 kbit / s. The ports can each be set up in different ways; eg. Can serial port 1 set to Virtual COM Mode, serial port 2 for TCP server, serial port 3 for TCP client and serial port 4 for UPD mode. Eth4ser-A-I has 2 kV isolation on the serial ports, but has only RS422 / 485 ports and screw terminals instead of DB9 connector

Administration
Indstilles over netværket via http
Diverse
Leveres uden strømforsyning. Benyt eventuelt DC24V2A-D. Program CD og manualer samt skrueterminaler medfølger
Kabinet
Metalkabinet i format 53 x 145 x 120 mm (H x B x D)
Montering
DIN skinne monteringsdele medfølger
Netværk
2 x 10/100 Mbit Ethernet redundant netværksport, auto fallback mindre end 200 ms
Protokoller
TCP, UDP, Telnet, DHCP, https, NTP, BootP, ARP, DNS, SNMP
Serielle porte
Fire porte, der kan bruges som RS422 eller RS485. Hastigheder fra 300 til 460 Kbit/s, Databit:5/6/7/8, Stopbit:1/2. Paritet: Lige/Ulige/Ingen
Signaler
RS422: TxD+, TxD-, RxD+, RxD-, GND. RS485 2-leder: Data+, Data-, GND
Software
Windows 2000/XP/VISTA/Windows7/8 32/64 bit samt Windows 2012
Stik
Seriel porte: 4 x skrueterminaler. Ethernet: 2 x RJ45 hunstik
Strømforsyning
Redundant spændingsforsyning: 2 x 9 ~ 48 VDC via 7 polet skrueterminal
