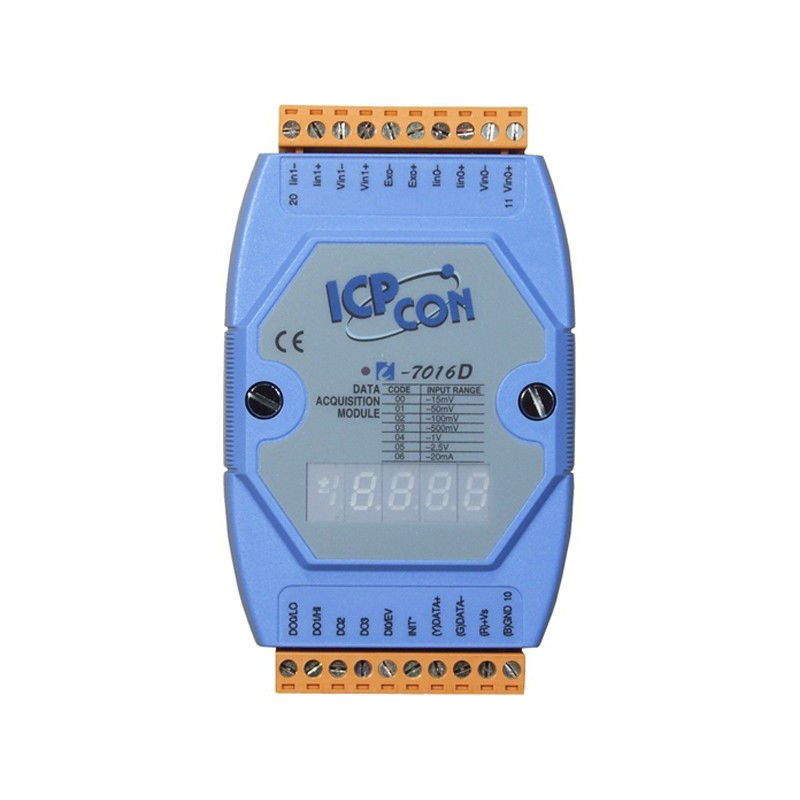

RS485 Module for load cells
2 analog inputs for 4 wire load cell,
1 excitation Exit
1 Digital input
4 digital outputs
Supply: 10 - 30VDC
In the industrial environment, there are many examples where force is to be converted to a measurable electrical output.
In most cases, a strain gauge bar meter in a load cell is used. But the question is, how should we handle these electrical output measurements? In this situation, the M485-AD16DA12 ID certainly is the best choice. Not only can the module process data from a load cell or bar meter, it also has linear mapping that can be used to directly convert the resulting data to weight via a custom correspondent table. M485-AD16DA12 ID supports full-bridge voltage meters and provides 2 analog input channels, 1 excitation voltage output channel, 1 digital input channels and 4 digital output channels. The module has a programmable input range (± 15 mV, ± 50 mV, ± 100 mV, ± 500 mV, ± 1 V and ± 2.5 V), and each analog input channel can be configured individually. Excitation voltage output may be in the range 0 ~ +10 V with a driving efficiency of 40 mA. Digital output channels can also be set as high or low alarm outputs.
125 Ω Shunt resistance, 1 pc. pr. Channel
Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm
RS-485 Interface
DCON Modbus/RTU Protocol
8 x Analog Inputs
4 x Relay Outputs
DIN rail / wall mount
Temperature: -25 to +75°C
RS485 module with 4 analog outputs
0-20mA or 0 - +/- 10V
D / A response time: 10ms
Resolution: 14bit
Supply voltage: 10 - 30vdc
8 channel analog input module for RS485 Bus
16bit resolution
10 measurements per second (total)
for current measurement - shunt with 125 ohm resistance
Supply voltage: 10 - 30vdc / 1.3 watt
Dim: 123 x 72 x 35 mm
with your bracket
