Terminal board with 100 screw terminals, 100 pin SCSI-II, Adlink DIN-100S-01
100 screw terminal terminals
1 x 100 pin SCSI-II connector
For DIN rail mounting
Cable available as an accessory
158 x 120 x 52 mm (B x L x H)
Supports a 32-bit 5 V PCI bus
32-CH isolated digital inputs
32-CH isolated digital outputs
2500 VRMS optical isolation
Sink current up to 500 mA on each isolated output

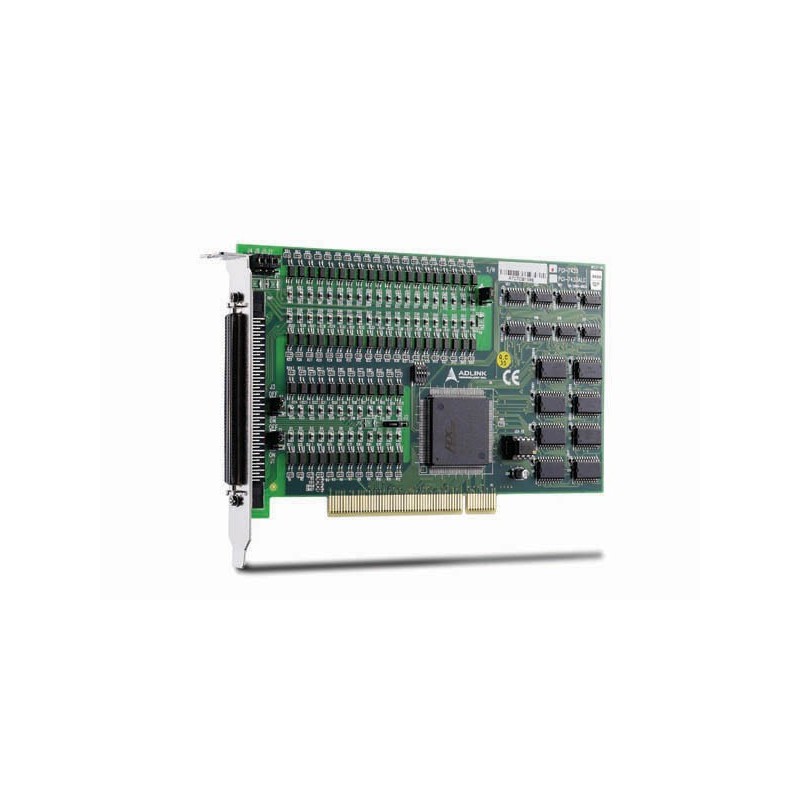

OPTO32I32PCI (ADLINK's PCI-7432) card is a 64-CH high-density digital input and/or output cards that provide a robust 2,500 V isolation protection and are suitable for most industrial applications. The wide input range of the OPTO32I32PCI makes it easy to sense the status of external devices. There are several options for OPTO32I32PCI, such as normal version with input range from 0 to 24 V, as well as HIR version with high input range from 0 to 50 V.
The OPTO32I32PCI feature a wide output range from 5 to 35 V, suitable for relay driving and industrial automation applications. The OPTO32I32PCI also provide two interrupt sources on digital input channels, which are easily configurable.
100 screw terminal terminals
1 x 100 pin SCSI-II connector
For DIN rail mounting
Cable available as an accessory
158 x 120 x 52 mm (B x L x H)
1 meter kabel til brug mellem I/O-kort og TERM100S
3,0 meter kabel til brug mellem I/O-kort og TERM100S
5,0 meter kabel til brug mellem I/O-kort og TERM100S
Support a 32-bit 3.3 V or 5 V PCI bus
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports handshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
8 af de digitale udgange kan trække op til 500mA pr. kanal
Antal af ind- og udgange kan udvides til 32
Supports a 32-bit 5 V PCI bus
8-CH relay outputs
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Extendable up to 32-CH relay outputs
Supports a 32-bit 5 V PCI bus
64-CH isolated digital inputs
2500 VRMS optical isolation
Sink current up to 500 mA on each isolated output
