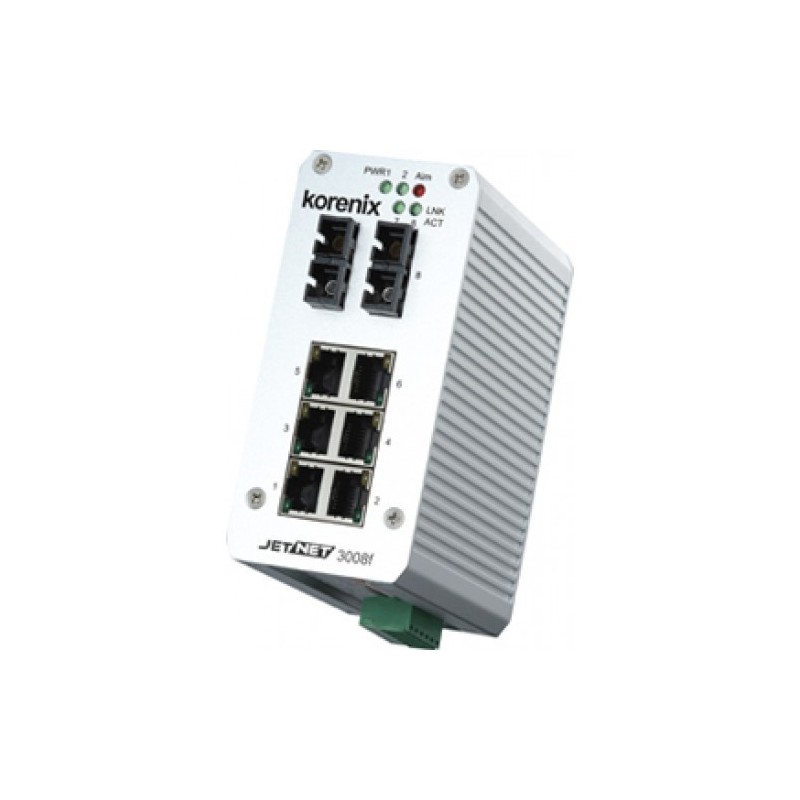

Unmanaged 6 x 10/100Mbit switch
2 x SC 100Mbit Multi Mode
Power redundancy
Dual DC10~60V power inputs
IP31 tæt
-25~70oC driftstemperatur
En høj ydeevne sikres af de understøttede netværksteknologier, der er beregnet til at sikre en stabil drift af netværkstrafik (broadcast storm filtering og flow control). Switchen er beregnet til industri. Den er bygget i aluminiumskabinet, indeholder en backup strømindgang, har et stort driftstemperaturområde og en relæudgang til alarmering skulle der opstå fejl. Beregnet til montering på DIN skinne.
2000 MAC adresser, 448 Kbit buffer
MiniGBIC / SFP, LC type, 1310 nm, 50 km, single mode
NON-MANAGED SWITCH
Jetnet 3005, 5 ports industriswitch
4 x RJ45 10/100Mbit
1 x ST fiber 100Mbit Multi Mode
IP50
Korenix JETI / O 6511
Network module with 8 x analog inputs
Channels: 8
Resolution: 16 bit
Analog inputs: ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface to the power supply
10/100 Mbit m / RJ45 female connector
Operating temperature: - 25 ° C - 70 ° C
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block. Max 3.2 W
Ethernet module with 8 x analog inputs
Channels: 8
Resolution: 16 bit
Analog inputs: ± 150 mV, ± 500 mV, ± 1 V, ± 5 V, ± 10 V and ± 20 mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs in relation to the power supply
Magnetic 1500 V from network interface to the power supply
10/100 Mbit m / RJ45 female connector
Operating temperature: - 25 ° C - 70 ° C
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 3.2 W
