RS232 - RS422/485

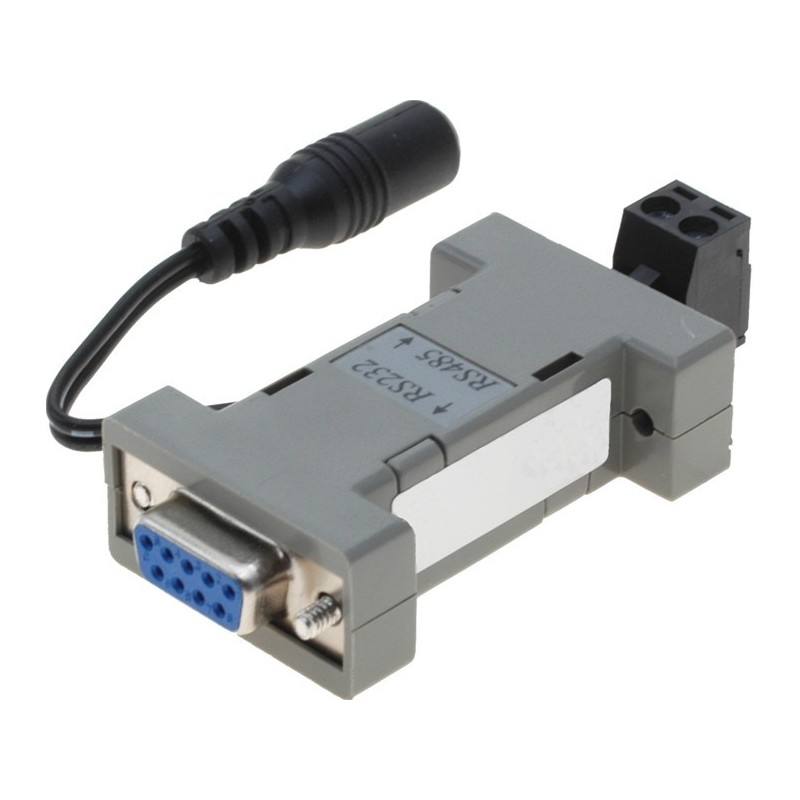

With CNV232-485PW + you get an RS485 or RS422 port on the PC
Selecting RS422 or RS485 with DIL switches on the device
Super compact with DB9 female and screw terminals
Can be powered by external voltage from 9 - 12VDC / 500mA
Operating temperature: -40 - + 85 ° C

RS232-RS422/485 konverter
Hastighed: 230.4 kBit/s
RTS/CTS support
Til DIN og vægmontage
Plug-in terminal block til RS422/485

Optoisolated RS-232 for RS485 converter
3kVDC isolation on RS232 from DC input
ESD protection for RS232 / 485
Baud rate 300 bit / s to 115,200 bit / s
Supports power inputs of +10 V DC to +30 V DC
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

RS485 & nbsp; recoverable RS232 controller / converter
Link to 3 x RS232 units from 1 x RS485 bus
Baud speed 300 bit/s to 115,200 bit/s
10 V DC to + 30 V DC
Dual watchdog
256 KB SRAM buffer
1 x & nbsp; RS485 address per. serial interface
Operating temperature: -25 ° to + 75 ° C
For DIN rail mounting

Moxa A53, DB9 W/ADAPTER

Optiskt isolerad RS232-adapter, max. 115,2 kbps, automatisk flödeskontroll, DB9-kontakt

Industrial RS232 to 422/RS485 Serial Converter/ Repeater with 2 KV Isolation, MOXA TCC-100i

RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 KV isolation protection (TCC-100I/TCC-100I-T)
Wall and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
-20 to 60°C operating temperature

Optoisolated RS232 for RS422 / 485 Converter
3000vdc isolation
Up to 1.2 km on the RS422 / RS485
1.2kbit/s to 115.2 kbit/s, automatic baud rate
DB9 female connector for RS232 Signal
Screw terminals for RS422 / 485 signals
Supply 10 to 30 VDC

RS485 for RS232 or RS422 for RS232
optoisulated RS232 for RS422 / 485 Converter
supply voltage is isolated against RS232 page
Supply voltage is isolated against RS485 / 422 page
Automatic Baud rate control

Optoisolerede RS232 til RS422/485 konverter
3000Vdc isolation
24Vdc, 1.2W
RS-232 (DB9)
RS485 (2-Wire) eller RS422 (4-Wire)
Speed (bps): 1.200, 2.400, 4.800, 9.600,
19.2 k, 38.4 k, 57.6 k, 115.2 k
RTS control and RS-422 (switchable)

transfer mode RS422 - full duplex
max.transfer rate 115 kb/s
max. line length 1 200 m
transfered signals RxD, TxD
selectable terminator 120R
connector RS232 D - SUB 9 pin F
connector RS422 D - SUB 9 pin M
galvanic indication (LED) red PWR, yellow RxD, green TxD
power supply 12V + -10%
input supply max. 1W
dimension 63 x 17 x 34 mm

RS232 for RS485 converter
Opto-insulated
Galvanic isolation between DC input and RS232 port
Supply voltage: 9 - 50VDC, 10 - 34VAC
Automatic flow control
Up to 1.2km Built-in Termination Resistance - Can be Disconnected
Screw Terminals
